Product Comparison

Home > Product comparison

  • model Size(mm/inch) Magnet(OD/Wgt)(mm/oz) Rating Power Sensitivity (1w/1m) VC Size (mm/inch) Voice Coil Material Fs/Freq.Range Qts BL Vas EBP Net Weight
  • CDi7401

    38/1.5 Ferrite 90W 108dB 74/3 Edgewound Aluminum 500 ~ 17KHz T.m 4.5kg
  • NDi4409

    25.4/1 Neodyminum 50W 106dB 44/1.7 Edgewound Aluminum 800 ~ 19kHz T.m 0.9kg
  • CDi4402

    25.4/1 Ferrite 55W 105dB 44/1.7 Edgewound Aluminum 900 ~ 19kHz T.m 1.7kg
  • CDi4401

    25.4/1 Ferrtte/120mm 60W 106dB 44/1.7 Edgewound Aluminum 900 ~ 19kHz T.m 2.1kg

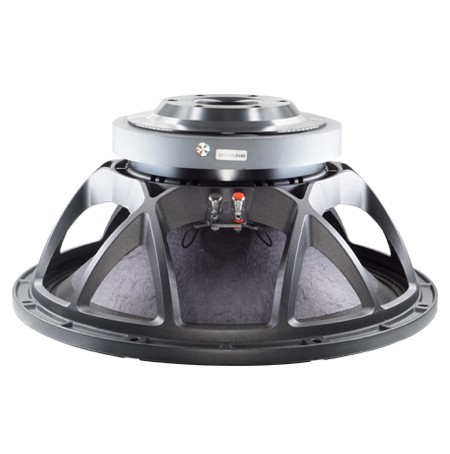

  • J6018/2

    460/18 245/190 1100W 97dB 115/4.5 Copper 31 ~ 300Hz 0.32 29T.m 223 100 16kg
  • S7118

    460/18 220/125 800W 97dB 100/4 Copper 32 ~ 1500Hz 0.36 26T.m 202 94 13kg
  • C15-400

    380/15 190/78 400W 97dB 76/3 SV-W(Copper) 39 ~ 3000Hz 0.40 18.8T.m 158 93 7.3kg
  • C15-500

    380/15 200/100 500W 98dB 76/3 CCAW 43 ~ 3000Hz 0.35 19.6T.m 143 119 8.7kg
  • M5315s

    380/15 220/125 800W 97dB 100/4 Copper 40 ~ 350Hz 0.32 25.4T.m 95 121 11.7kg
  • M5415/2

    380/15 220/125 800W 99dB 100/4 CCAW 40 ~ 2800Hz 0.3 22.4T.m 156 129 11kg
  • ND9012w

    300/12 Neodymium 400W 98.5dB 76/3 Aluminum 44~3500Hz 0.25 19.8T.m 81 177 4.4kg
  • U8212

    300/12 190/75 450W 96.5dB 76/3 Copper 49~3100Hz 0.33 18.4T.m 60 147 7.4kg
  • CX12441

    300/12 Ferrite 450W 97dB 76/3 CCAW 50 ~ 3000Hz 0.31 17.7T.m 68 165 10kg
  • S7012

    300/12 200/76 450W 97dB 76/3 Aluminum 41 ~ 2700Hz 0.34 16.3T.m 86 128 7.7kg
  • M5410

    250/10 156/50 300W 94.5dB 65/2.5 Copper 54 ~ 3600Hz 0.31 15.7T.m 35 172 4.2kg

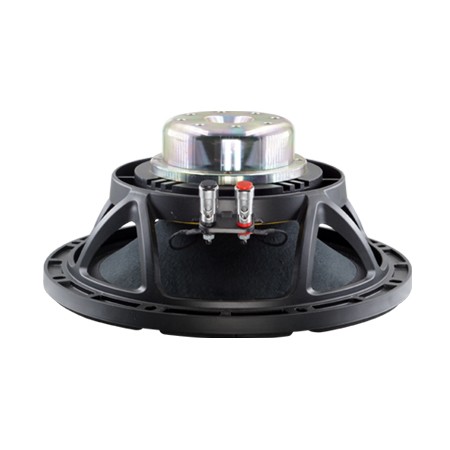

  • ND9410m/16II

    250/10 Neodymium 300W 95dB 65/2.5 Pure Aluminum 65 ~ 4500Hz 0.52 18.4T.m 27 112 2.3kg
  • ND9010w

    250/10 Neodymium 350W 96dB 76/3 Aluminum 62 ~ 3500Hz 0.29 18T.m 28 213 3.7kg
  • MB06-38

    200/6.5 120/30 100W 92dB 38/1.5 Flat CCAW 125 ~ 9000Hz 0.78 7.65T.m 2.9 127 2.1kg
  • CX6342

    170/6.5 140/45 150W 89dB 50/2 Edgewound CCAW 108 ~ 7800Hz 0.86 7.8T.m 3.2 113 3kg
  • FR421

    100/4 70/8 45W 87dB 20/0.8 CCAW 91 ~ 17KHz 0.88 3.9T.m 2.5 83 0.5kg
  • FR421nd

    100/4 Neodymiim 45W 88dB 20/0.8 CCAW 90 ~ 16kHz 0.64 4.6T.m 2.7 118 0.22kg

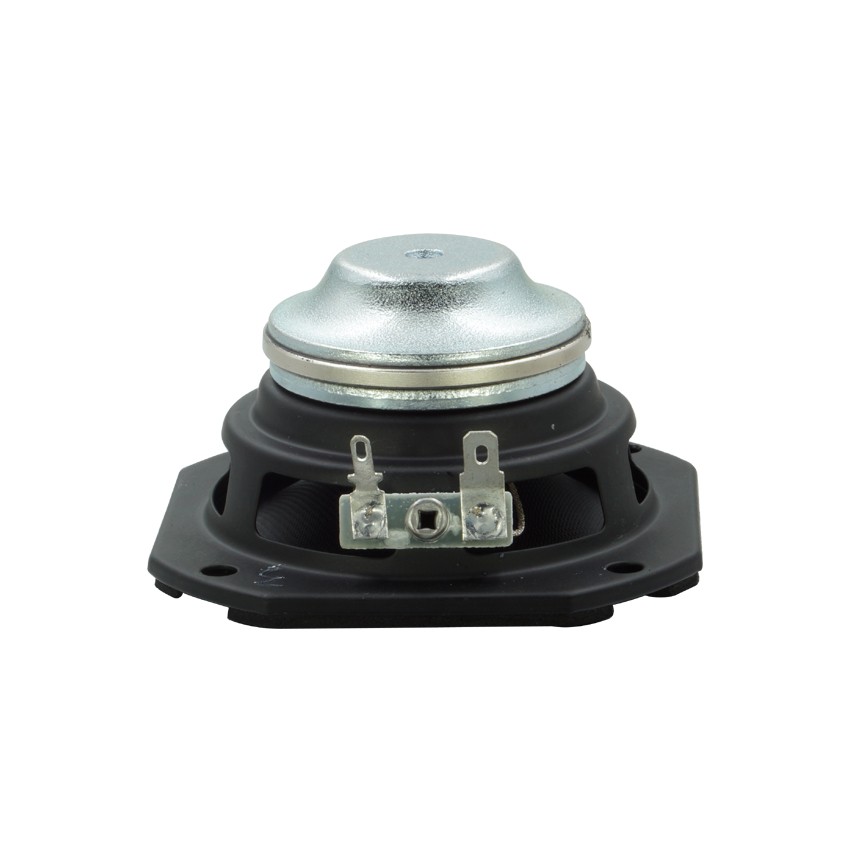

  • FR321nd

    80/3 Neodymium 40W 89dB 20/0.8 CCAW 115 ~ 15kHz 0.47 5T.m 1.0 214 0.22kg

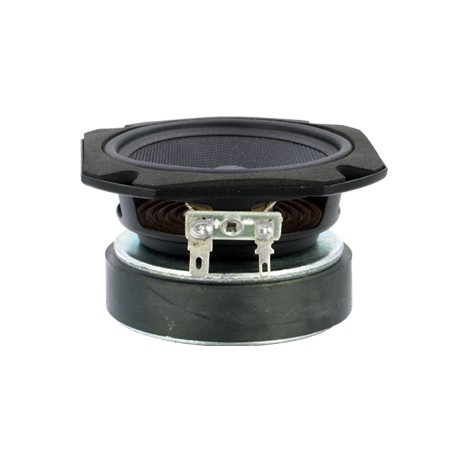

  • FR321

    80/3 70/8 40W 88dB 20/0.8 CCAW 110 ~ 15kHz 0.68 4T.m 1.03 133 0.48kg
