15DM550

15DM550

1. 1100 W continuous program power capacity
2. High sensitivity: 100dB 1w/1m
3. 76mm(3") high temperature inside/outsdie voice coil with pure aluminum wire
4. Peak to Peak maximum excursion of 50mm
5. Aluminum dust cap guarantees great voice coil heat dissipation
6. Double magnets allows a very high force factor and long driver displacement
7. Ideal for very compact 2-ways systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    44 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    550 Watts

  • Program Power2

    1100 Watts

  • Sensitivity(lw/lm)3

    100 dB

  • Frequency Range4

    44 ~ 3100 Hz

  • Minimum Impedance(Zmin)

    6.5 ohm

  • Voice Coil Diameter

    76/3 mm/inch

  • Voice Coil Material

    Pure Aluminum

  • Former Material

    Fiber Glass

  • Voice Coil Winding Depth

    18.5 mm

  • Number of layers

    2(inside/outside)

  • Magnet gap depth

    12 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.2 T

  • Magnet Outer Diameter/Wgt

    190/256 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 44 Hz

  • DC resistance

    Re 5.5 ohm

  • Mechanical factor

    Qms 17.3

  • Electrical factor

    Qes 0.36

  • Total factor

    Qts 0.35

  • Mechanical compliance

    Cms 0.14 mm/N

  • Mechanical resistance of suspension losses

    Rms 1.3 kg/s

  • Effective Moving Mass

    Mms 96 g

  • Half-space efficiency

    Eff 2.2 %

  • BL Factor

    BL 20.3 T.m

  • Equivalent Cas air load

    Vas 140 liters

  • Effective piston area

    Sd 0.0855 m^2

  • Max. linear excursion6

    Xmax ± 6.2 mm

  • Voice coil inductance

    Le1K 0.95 mH

  • Efficiency Bandwidth Product

    EBP 122
  • Mounting Information

  • Overall Diameter

    393 mm

  • Bolt Circle Diameter

    375 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    355 mm

  • Overall Depth

    188 mm

  • Net Weight

    10.9 kg

  • Shipping Weight

    12.3 kg

  • Shipping Box

    430x430x225 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

    Watts

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

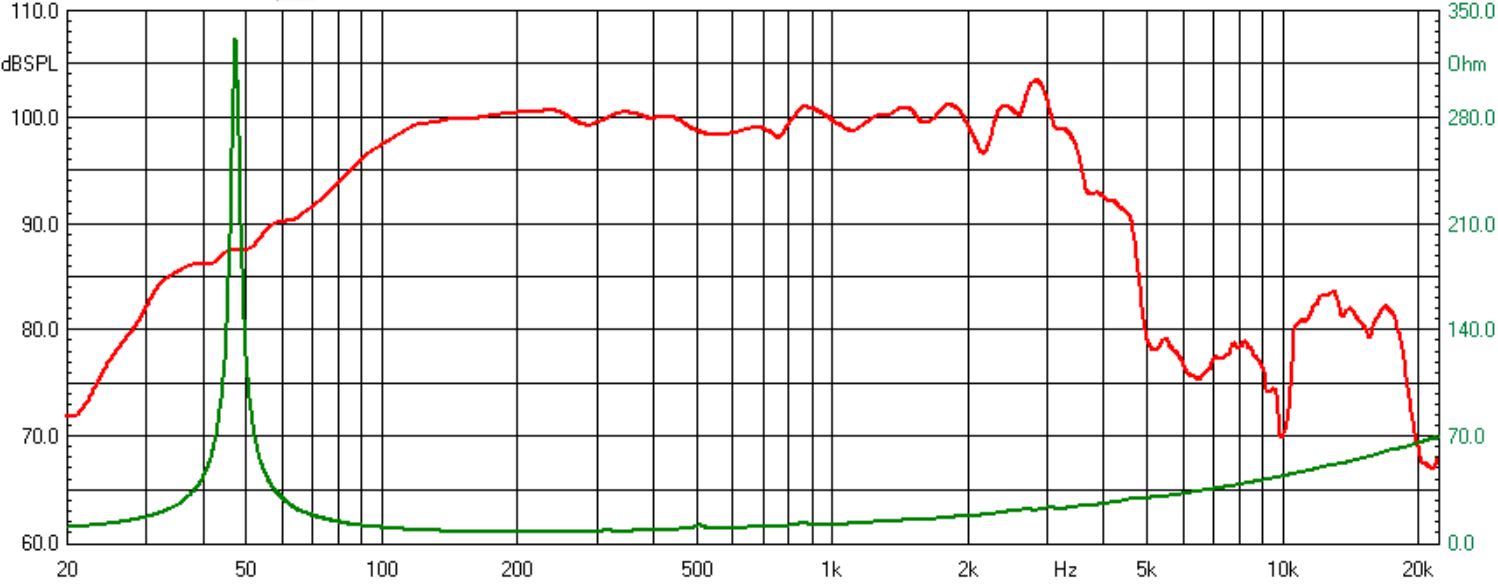

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/15DM550-CURVES.jpg

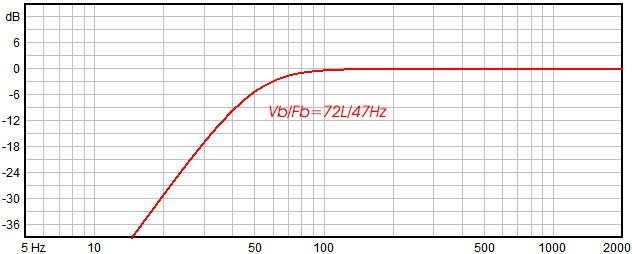

Computer predicted low frequency response

images/upfile/15DM550-PREDICTED.jpg
