Compression Dirvers

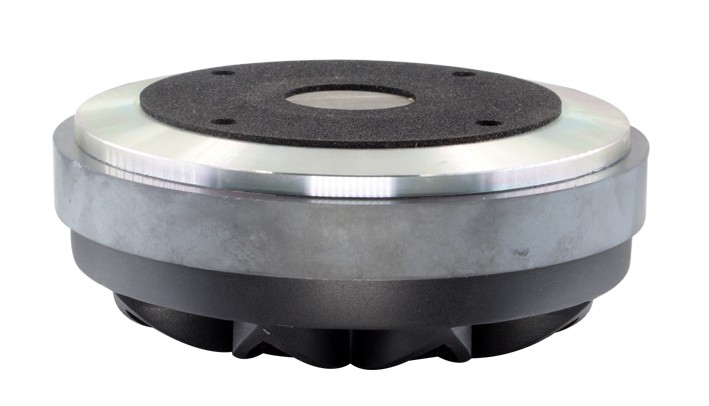

CDi7401

1. 180W, 108dB, 500~17k Hz

2. 75mm(3") edgewound aluminum VC

3. 1.5" exit throat

4. Aluminum rear cover, phase plug

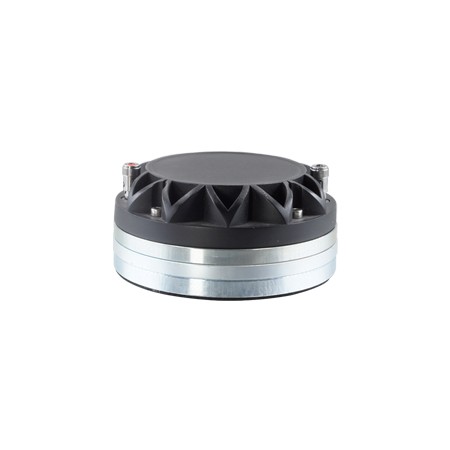

NDi6509

1. 180W, 109dB, 700Hz~18kHz

2. 75mm(3") 铝扁线音圈

3. 1.5英寸喉嘴

4. 短路环，钕磁铁

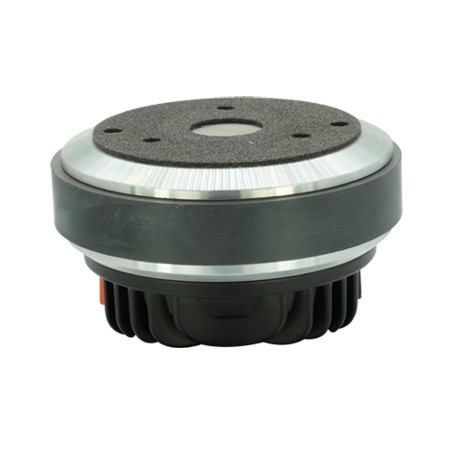

CDi4401

1. 120W, 106dB, 900~19k Hz

2. 44mm(1.7") edgewound aluminum VC

3. 1" exit throat

4. Aluminum heat sink cover, phase plug

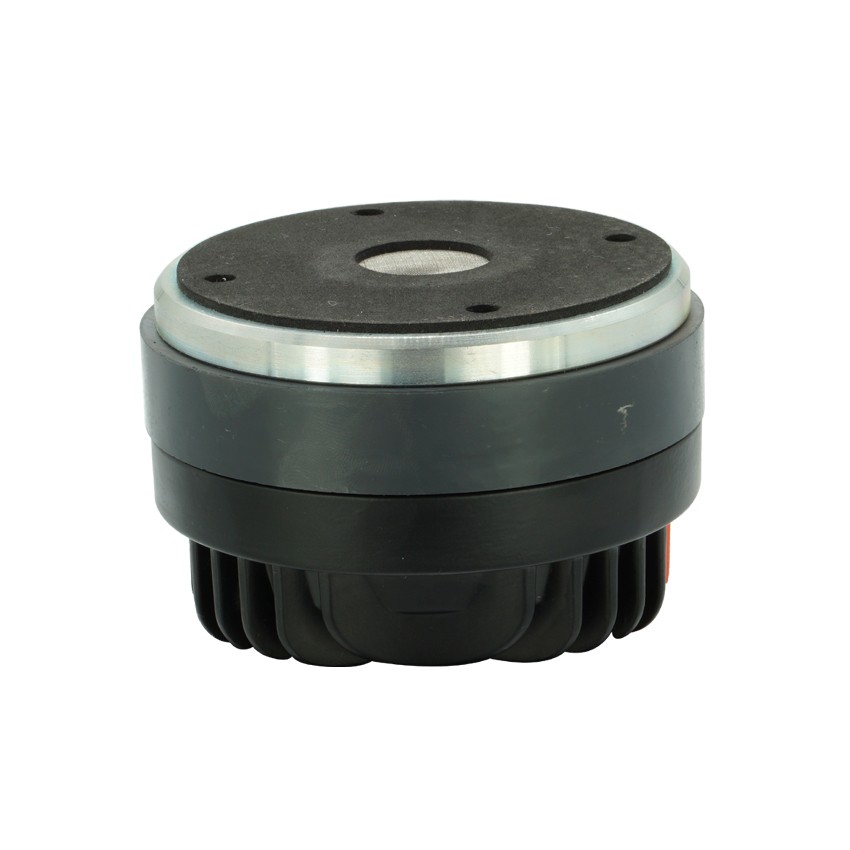

CDi4402

1. 110W, 105dB, 900Hz~19kHz

2. 44mm(1.7") edgewound aluminum VC

3. 1" exit throat

4. Aluminum heat sink cover, phase plug

21" & 24" Speakers

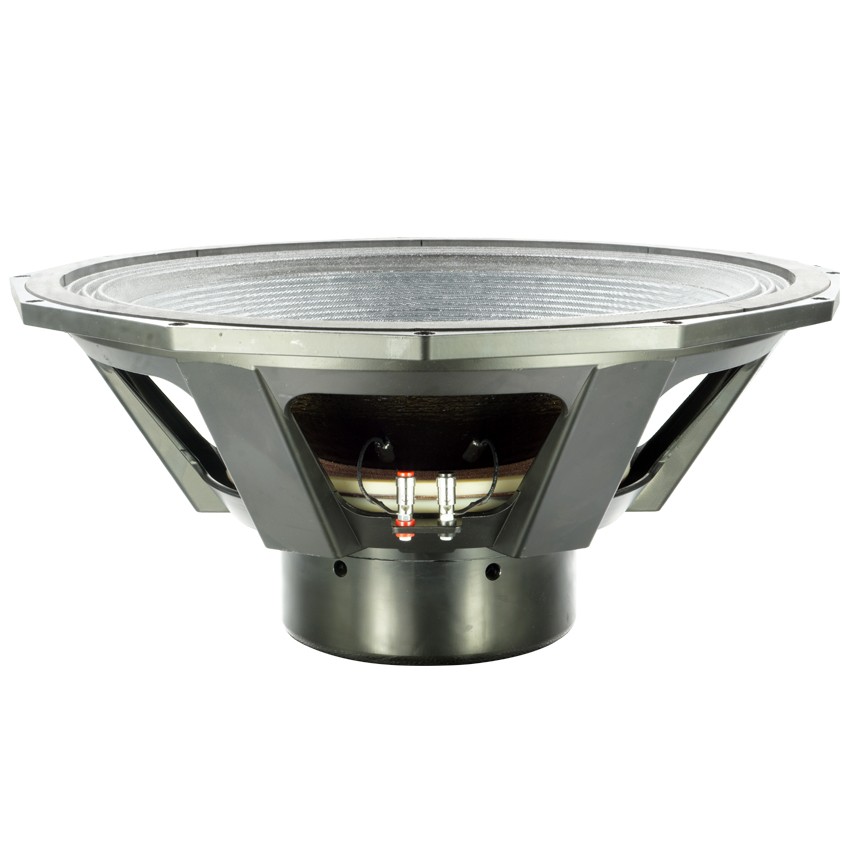

J6521nd

1.3600W continuous program power capacity

2.98dB Sens itivity 1w/1m

3.31Hz~1000Hz frequency response range

4.6"inside/outside voice coil for improved power-handling and durability
5.Forced air ventilation on U-yoke forminimum power compressoin

6.Optimized winding length for extended Xmax

7.Double spider for improved excursion control and linearithy

8.Ideal for compact horn-loaded subwo ofer application

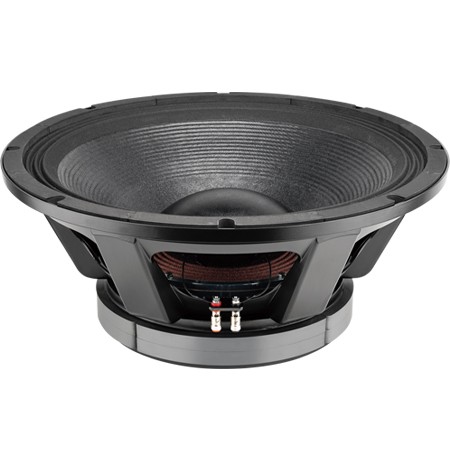

21DM2000

1. 4000W, 98dB, 36Hz~800Hz

2. 152mm(6") inside/outside copper voice coil

3. Double Ferrite magnet

4. Triple Conex dampers

J6021

1. 3000W, 97dB, 29Hz~1000Hz

2. 4.5" inside/outside voice coil

3. Ferrite magnet, Forced air ventilation

4. Dual silicone spiders

18" Speakers

J6118nd/2

1. 2800W, 97dB, 39~1000Hz

2. NEO magnet, double silicone spider

3. 4.5" inside/outside voice coil

4. Ideal for compact subwoofer application

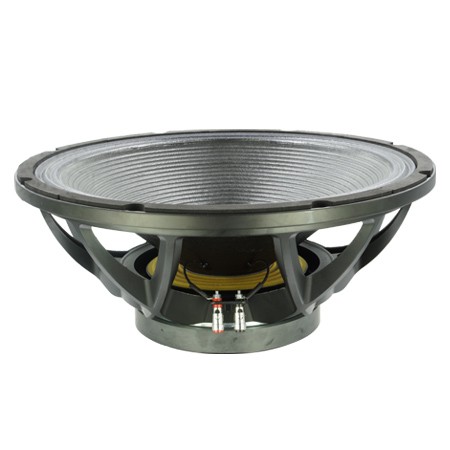

S7118

1. 1600W, 98dB, 32Hz~1000Hz

2. 4" inside/outside voice coil

3. Double spiders, ventilated VC

4. Ideal for compact bass-reflex subwoofer application

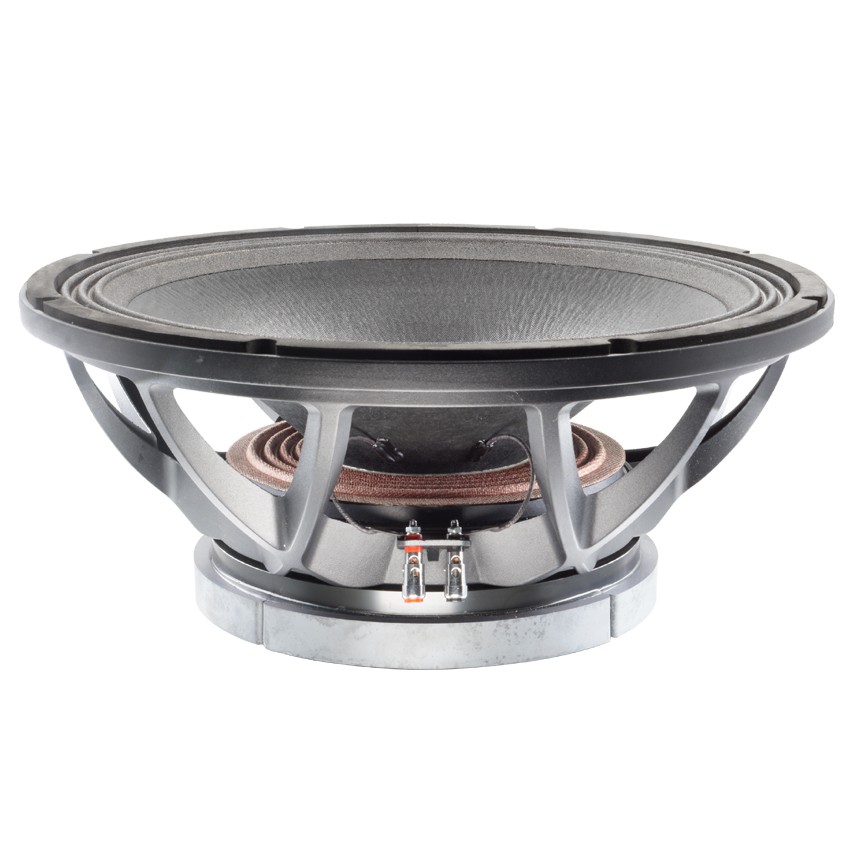

J6218/2

1. 2600W, 98dB, 40~1000Hz

2. 125mm( 5") inside/outside voice coil
3. Separated dual spiders assembly

4. Ideal for high quality horn-loaded subwoofer systems

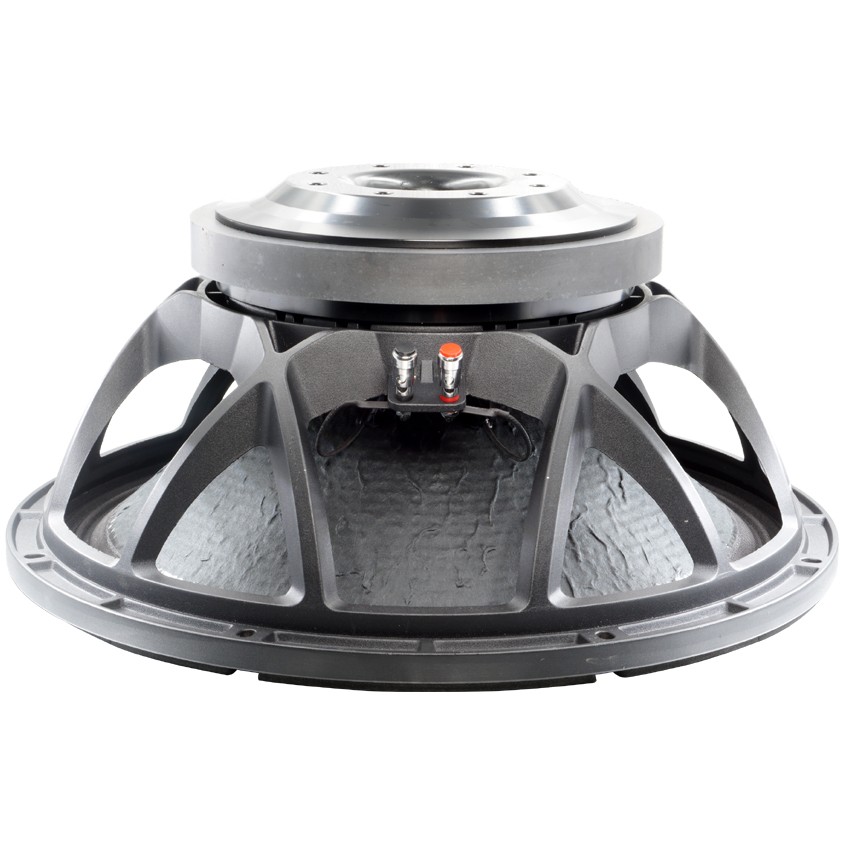

J6418

1. 3000W, 96dB, 41Hz ~1000Hz

2. 125mm( 5") inside/outside VC
3. Double silicone spider, waterproof cone

4. Ideal for compact bass-reflex subwoofer or horn-loaded application

15" Speakers

C15-400

1. 800W, 97dB, 38 ~ 3000Hz

2. 76mm(3") inside/outside VC with SV-W wire

3. Vented back plate, waterproof cone

4. Ideal for compact 2 or 3-way systems

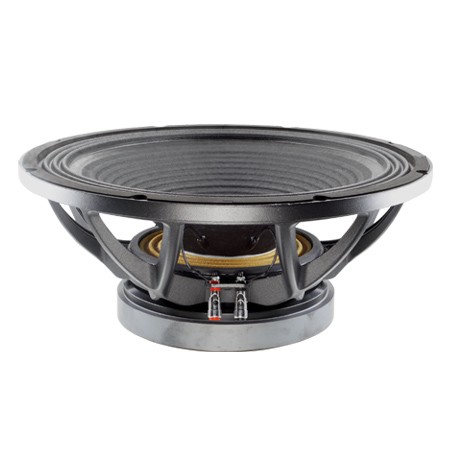

M5315s

1. 1600W, 97dB, 40Hz ~1000Hz

2. 100mm(4") inside/outside copper VC

3. Double spiders, triple-roll cloth edge

4. Ideal for compact bass-reflex subwoofer application

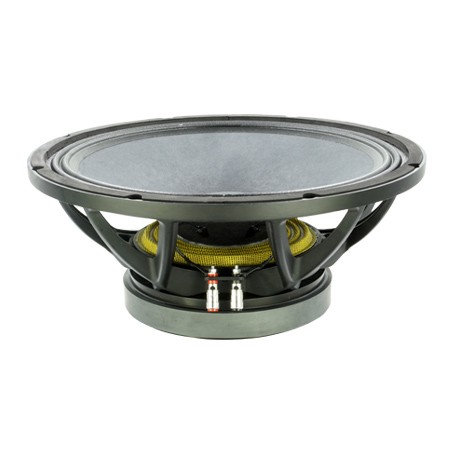

M5415/2

1. 1600W, 99dB, 40 ~ 2800Hz

2. 100mm(4") inside/outsdie CCAW VC

3. Ferrite magnetic, vented back plate

4. Aluminum demodulating ring

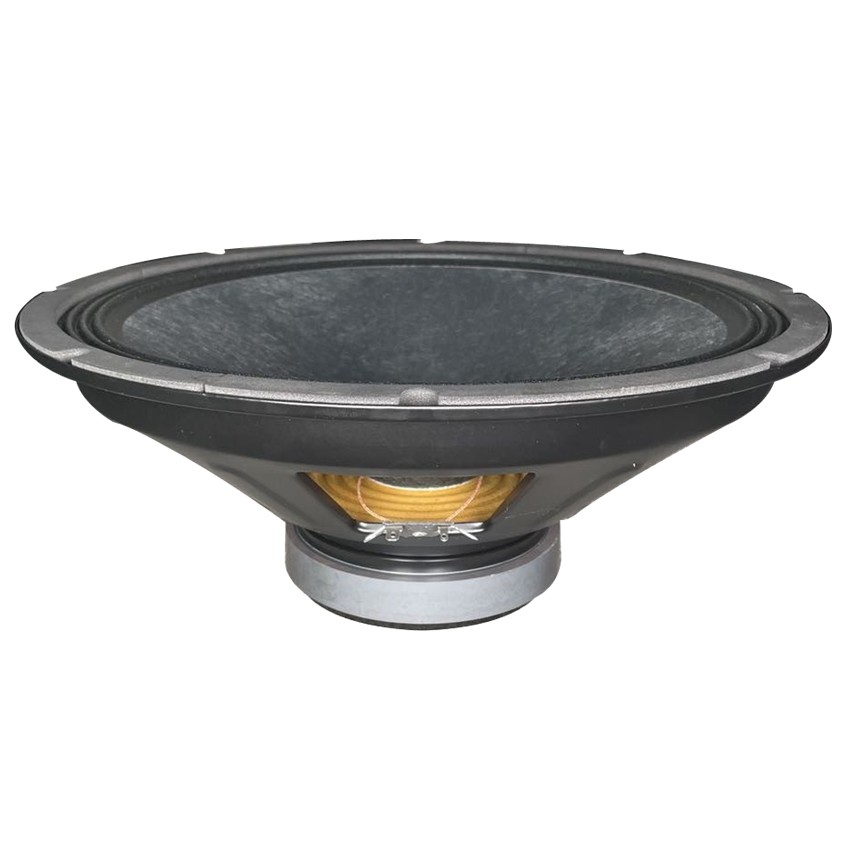

PA15-50/4ohm

1. 500W, 96.5dB, 44~2900Hz

2. Copper wire wounded on polyimide former

3. Long glassfiber impregnated cone

4. Ideal for compact 2-way systems

12" Speakers

ND9012w

1. 800W, 98.5dB, 44Hz~3500Hz

2. 76mm(3") aluminum VC wounded on Kapton former

3. Dual-forced air ventilation magnet system

4. Neodymium magnet, UKM paper cone

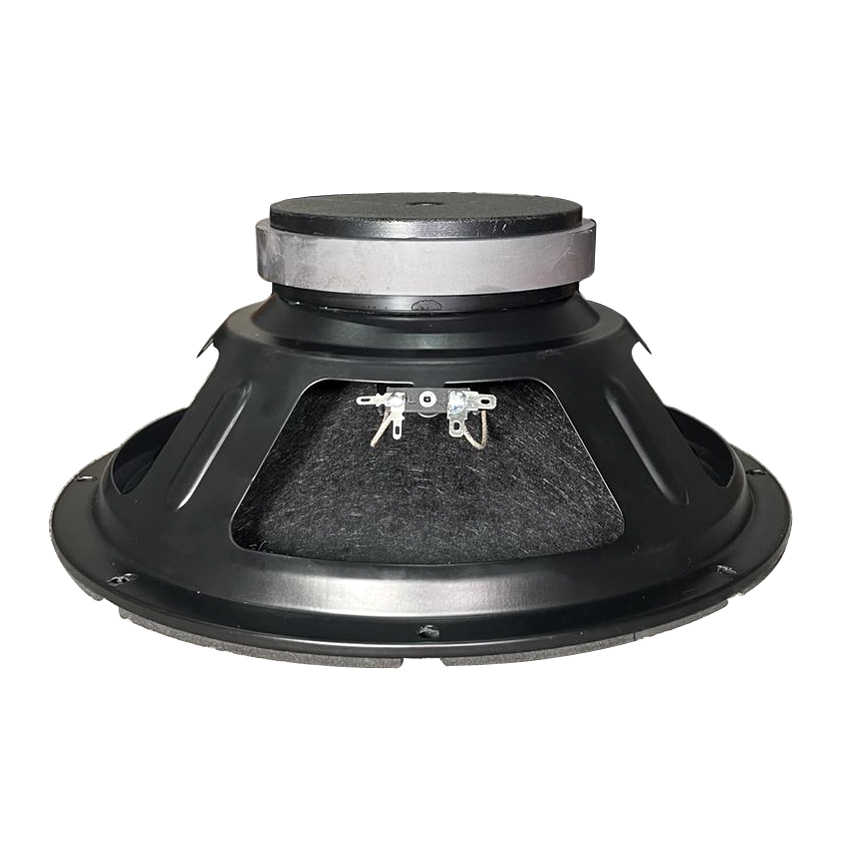

PA12-50/8ohm

1. 400W, 95dB, 47~2600Hz
2. Copper wire voice coil
3. Long glassfiber impregnated cone
4. Ideal for compact 2-way systems

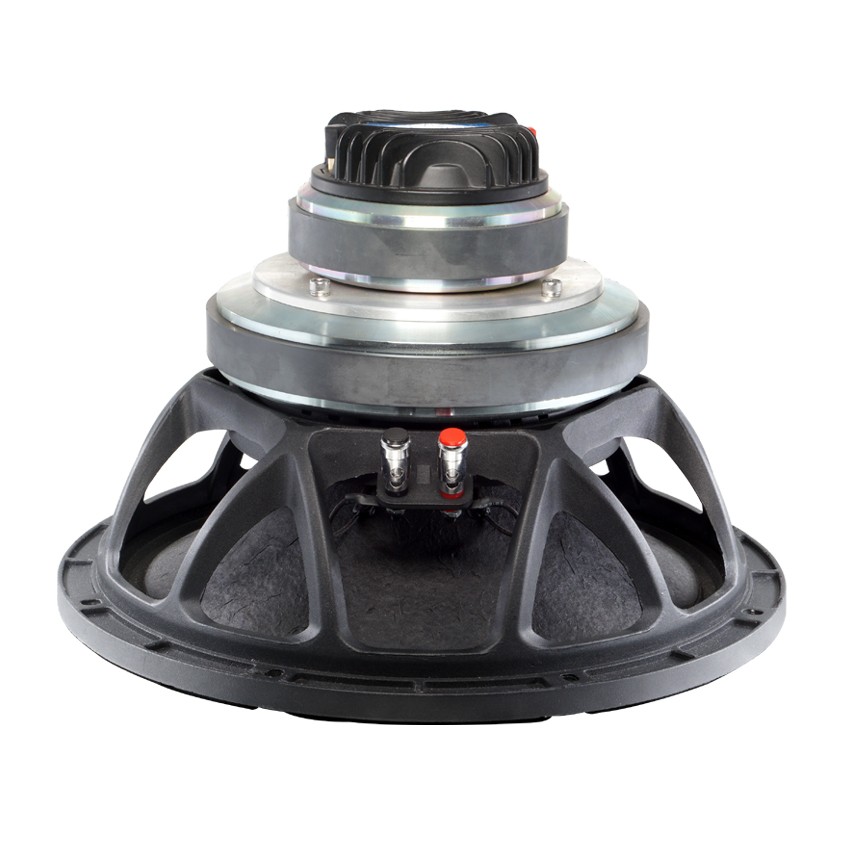

CX12441

1. LF 800W/ 98dB, HF 120W/106dB

2. 76mm LF inside/outside CCAW VC, HF edgewound aluminum VC

3. 1" polyimide HF driver

4. For stage monitors or compact bass reflex systems

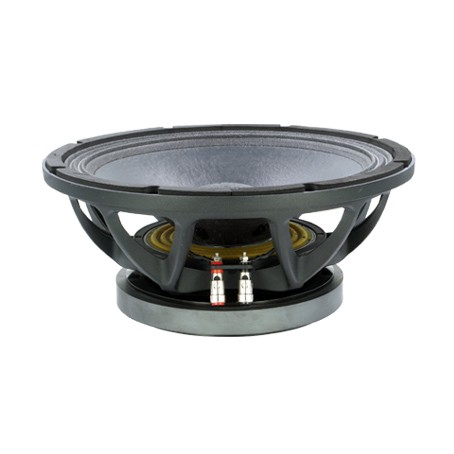

S7012

1. 900W, 97dB, 41 ~ 2700Hz

2. 3" inside/outside winding voice coil with aluminum wire

3. Unique basket design and multiple backplate vents, UK special cone

4. Idea for high quality compact 2 or 3-way systems

10" Speakers

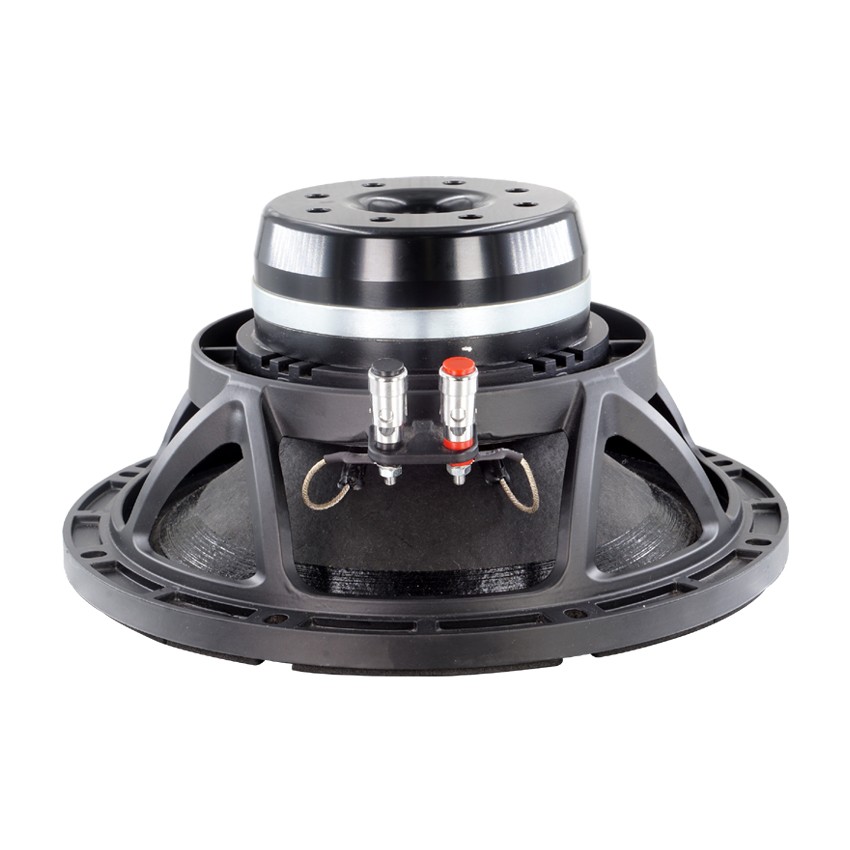

ND9310m/16

1. 700W, 96dB, 63~4100Hz

2. 3" inside/outside winding CCAW voice coil

3. Aluminum demodulating ring

4. SH grade neodymium magnet

M5410

* 300W, 94.5dB, 54~3600Hz

* 2.5" voice coil with Kapton former

* Ideal for 2 or 3-way systems

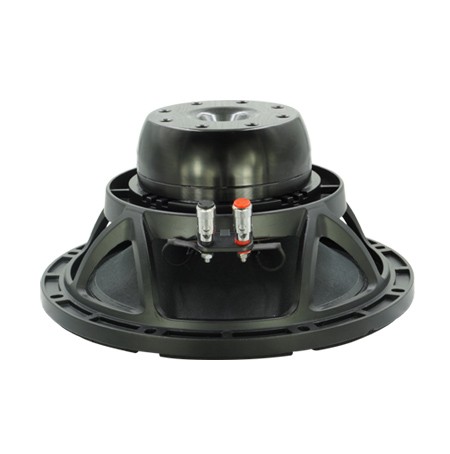

ND9010w

1. 700W, 96dB, 62 ~ 3500Hz
2. 76mm(3") aluminum voice coil wounded on Kapton former

3. FEA optimized neodymium magnet assembly allows the highest force factor and excursion capability
4. Optimized for the use in line array systems or compact bass reflex enclosure

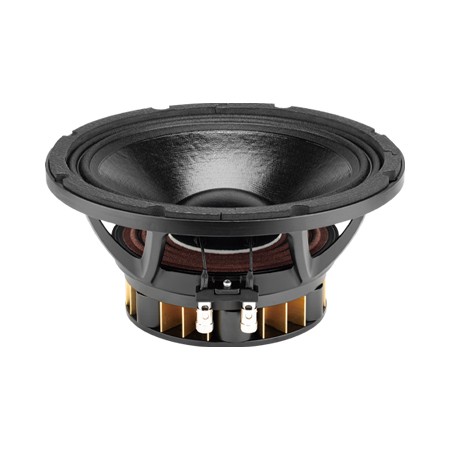

ND9810

1. 800W, 99dB, 70Hz~4100Hz

2. 76mm(3") copper clad aluminum VC

3. Neodymium magnet

4. Aluminum heat radiator

8" Speakers

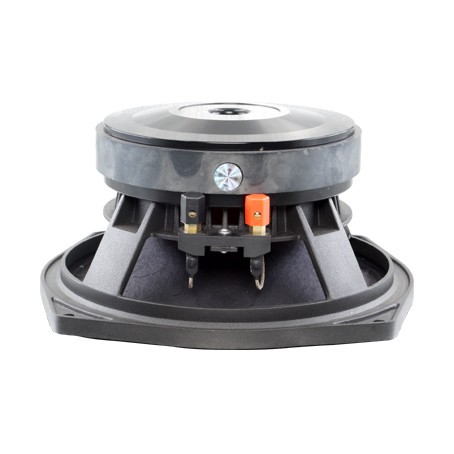

V3208m/16

1. 400W, 95dB, 31Hz~800Hz

2. 2" inside/outside CCAW VC wounded on polyimide former

3. Weather protected cone, aluminum demodulating ring, inverted dust cap

4. Optimized for the use in line array or multi-way systems

ND9208w

1. 500W, 95dB, 63~4kHz

2. 2" high temperature voice coil

3. Neodymium magnet system

4. Ideal for array or fullrange system

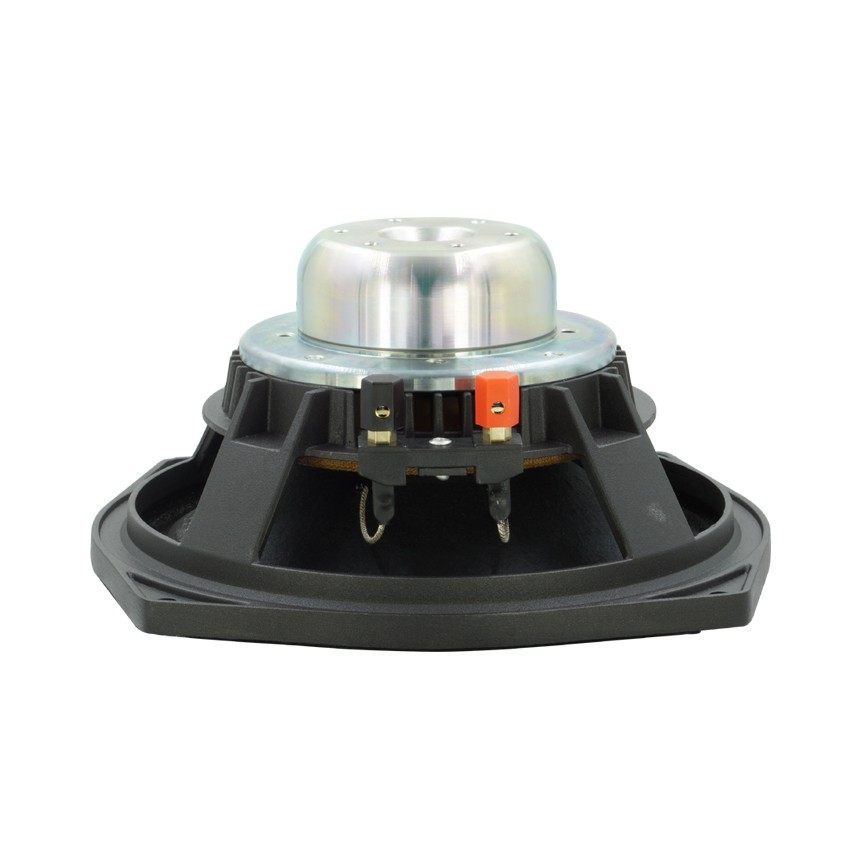

ND9408m/16

1. 500W, 94dB, 86~6kHz

2. 2" CCAW voice coil

3. Neodymium magnet

4. Aluminum demodulating ring

ND9608m/16

1. 600W, 94.5dB, 70~5kHz

2. 2.5" inside/outside aluminum VC

3. Neodymium magnet

4. Aluminum demodulating ring

6.5" speakers

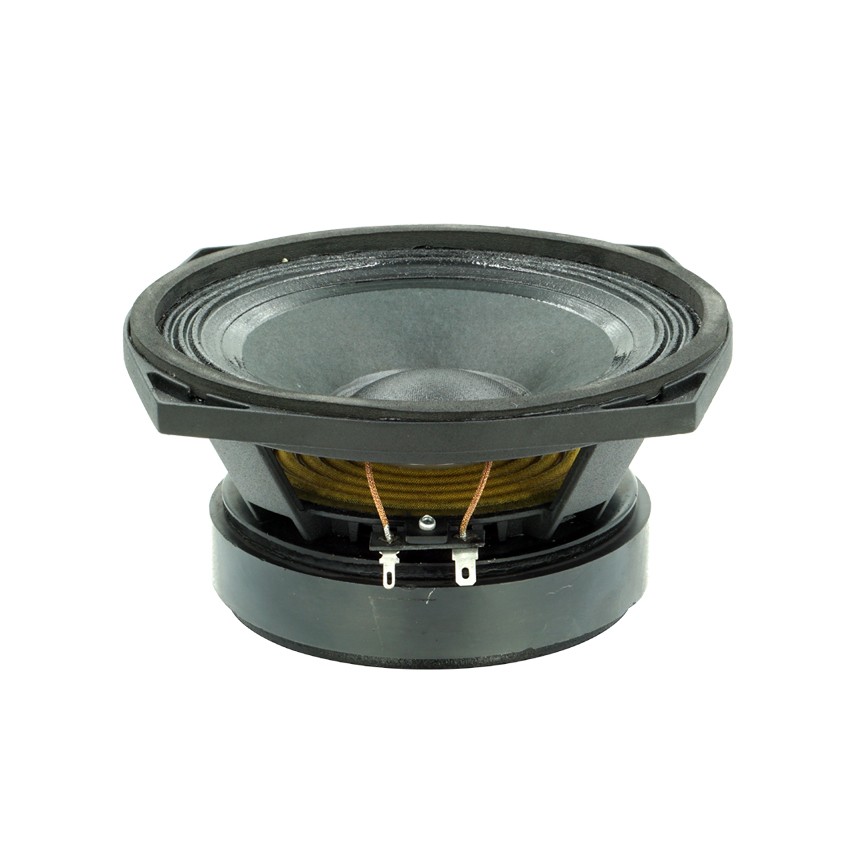

MB06-38

1. 200W, 92dB, 125 ~ 9000Hz

2. 1.5" flat CCAW VC

3. Copper shorting ring

4. Ideal for the use in array systems, midrange application

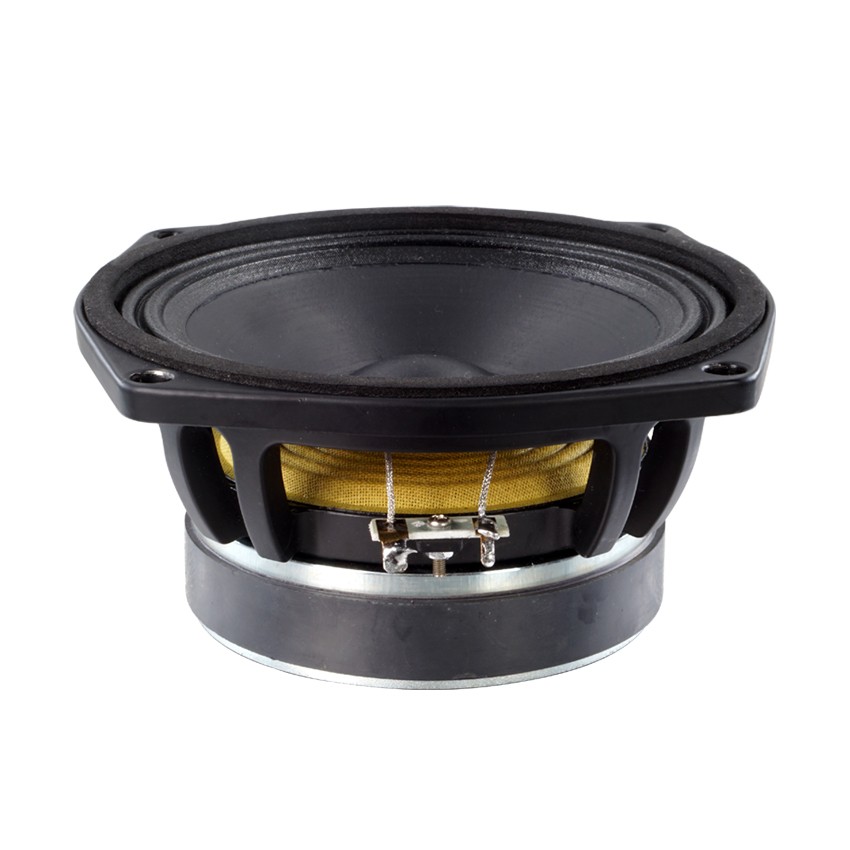

V3006m/16

1. 200W, 93dB, 81 ~ 6000Hz

2. 38mm(1.5") CCAW VC

3. FEA optimized magnet system, waterproof cone

4. Ideal for the use in 2-way line array as mid-bass or 3-way system as midrange

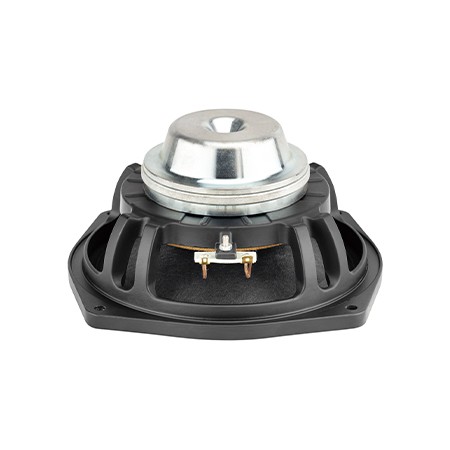

ND9306m

1. 200W, 95dB, 119Hz~5600Hz

2. 38mm(1.5") CCAW wire wounded on fiberglass

3. Neodymium magnet system

4. Ideal for line array or midrange applications

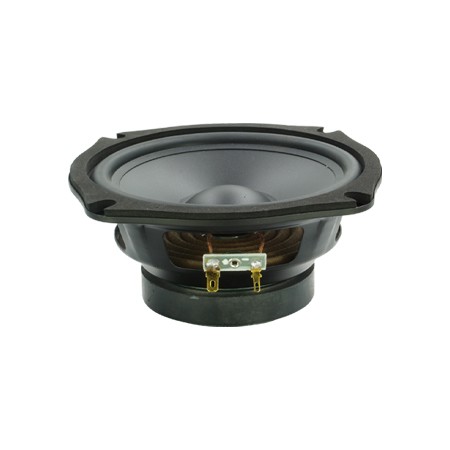

R06-25

1. 100W, 88dB, 50Hz ~4200Hz

2. 25mm(1") two layers copper VC

3. PP cone, rubber edge

4. Ideal for bass-reflex systems

Below 5" speakers

CX12441

1. LF 800W/ 98dB, HF 120W/106dB

2. 76mm LF inside/outside CCAW VC, HF edgewound aluminum VC

3. 1" polyimide HF driver

4. For stage monitors or compact bass reflex systems

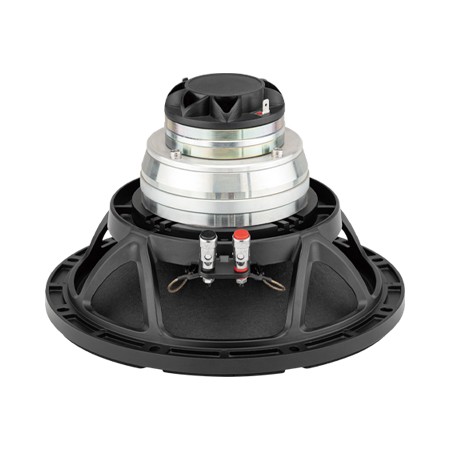

CXN1044

1. LF 700W/98dB, HF 100W/106dB

2. 76mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

3. 1" HF driver, neodymium magnet

4. For stage monitors or compact bass reflex systems

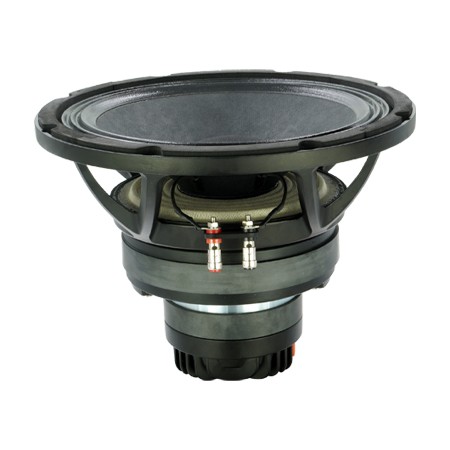

CX10442

1. LF 500W/95dB, HF 100W/102dB

2. 65mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

3. 1" PEEK HF driver

4. For stage monitors or compact bass reflex systems

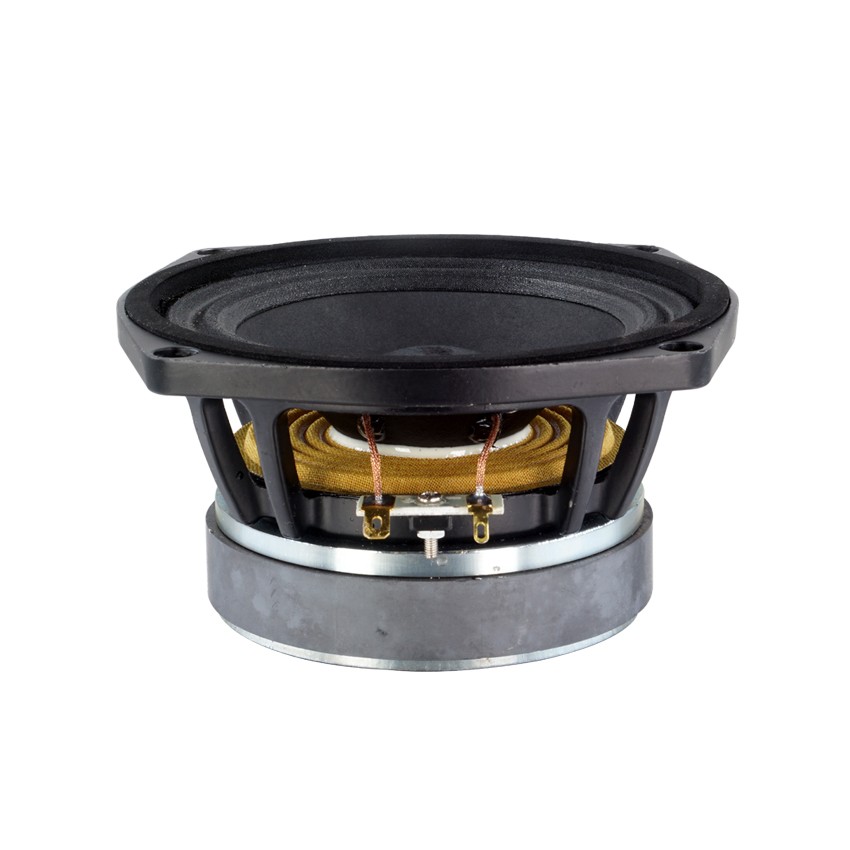

V3005m

1. 200W, 91dB, 121 ~ 7000Hz

2. 38mm(1.5") CCAW VC

3. FEA designed ferrite magnetic

4. Ideal for the use in line array as mid-bass or 3-way system as midrange
