Subwoofer

•

  J6521nd

  1.3600W continuous program power capacity

  2.98dB Sens itivity 1w/1m

  3.31Hz~1000Hz frequency response range

  4.6"inside/outside voice coil for improved power-handling and durability

  5.Forced air ventilation on U-yoke forminimum power compressoin

  6.Optimized winding length for extended Xmax

  7.Double spider for improved excursion control and linearithy

  8.Ideal for compact horn-loaded subwo ofer application
0
•

  21DM2000

  1. 4000W, 98dB, 36Hz~800Hz

  2. 152mm(6") inside/outside copper voice coil

  3. Double Ferrite magnet

  4. Triple Conex dampers

1
•

  J6021

  1. 3000W, 97dB, 29Hz~1000Hz

  2. 4.5" inside/outside voice coil

  3. Ferrite magnet, Forced air ventilation

  4. Dual silicone spiders

2
•

  J6118nd/2

  1. 2800W, 97dB, 39~1000Hz

  2. NEO magnet, double silicone spider

  3. 4.5" inside/outside voice coil

  4. Ideal for compact subwoofer application
3

Woofer & Mid-bass

•

  C15-400

  1. 800W, 97dB, 38 ~ 3000Hz

  2. 76mm(3") inside/outside VC with SV-W wire

  3. Vented back plate, waterproof cone

  4. Ideal for compact 2 or 3-way systems

0
•

  M5415/2

  1. 1600W, 99dB, 40 ~ 2800Hz

  2. 100mm(4") inside/outsdie CCAW VC

  3.  Ferrite magnetic, vented back plate

  4.  Aluminum demodulating ring

1
•

  PA15-50/4ohm

  1. 500W, 96.5dB, 44~2900Hz

  2. Copper wire wounded on polyimide former

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
2
•

  PA15-65/4ohm

  1. 660W, 95.5dB, 38~3000Hz

  2. Copper wire wounded on polyimide former

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
3

Midrange

•

  M5415/2

  1. 1600W, 99dB, 40 ~ 2800Hz

  2. 100mm(4") inside/outsdie CCAW VC

  3.  Ferrite magnetic, vented back plate

  4.  Aluminum demodulating ring

0
•

  J6015

  1. 1300W, 99dB,43 ~ 2800Hz

  2. 86mm(3.4") inside/outsdie CCAW VC

  3. USA Paper cone, dual-forced hyper-venting

  4. Ideal for high quality compact 2 or 3-way systems

1
•

  15DM550

  1. 1100W, 100dB, 44 ~ 3100Hz

  2.  76mm(3") inside/outsdie voice coil with pure aluminum wire

  3.  Aluminum dust cap

  4.  Ideal for very compact 2-ways systems

2
•

  M5215

  1. 900W, 99dB, 45 ~ 2800Hz

  2. 76mm(3") inside/outside CCAW VC

  3. USA paper cone, M-roll surround, curved cone

  4. Ideal for high quality compact 2 or 3-way systems

3

HF Drivers

•

  CDi7401

  1. 180W, 108dB, 500~17k Hz

  2. 75mm(3") edgewound aluminum VC

  3. 1.5" exit throat

  4. Aluminum rear cover, phase plug

0
•

  NDi7409

  1. 180W, 109dB, 700Hz~18kHz

  2. 75mm(3") edgewound aluminum VC

  3. 1.5" exit throat

  4. Copper inductance ring, neodymium magnet

1
•

  NDi6509

  1. 180W, 109dB, 700Hz~18kHz

  2. 75mm(3") 铝扁线音圈

  3. 1.5英寸喉嘴

  4. 短路环，钕磁铁

2
•

  NDi4409

  1. 100W, 106dB, 800Hz~19kHz

  2. 44mm(1.7") edgewound aluminum VC

  3. 1.5" exit throat

  4. Neodymium magnet

3

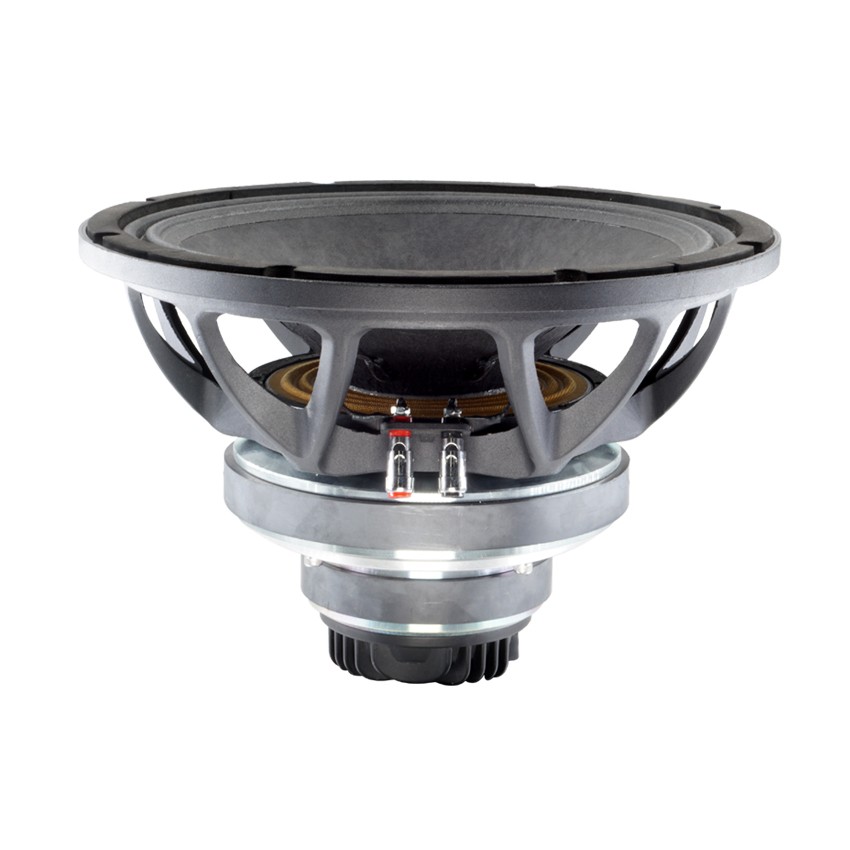

Coaxial Speakers

•

  CX12441

  1.  LF 800W/ 98dB, HF 120W/106dB

  2. 76mm LF inside/outside CCAW VC, HF edgewound aluminum VC

  3. 1" polyimide HF driver

  4. For stage monitors or compact bass reflex systems

0
•

  CXN1044

  1. LF 700W/98dB, HF 100W/106dB

  2. 76mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

  3. 1" HF driver, neodymium magnet

  4. For stage monitors or compact bass reflex systems

1
•

  CX10442

  1. LF 500W/95dB, HF 100W/102dB

  2. 65mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

  3. 1" PEEK HF driver

  4. For stage monitors or compact bass reflex systems

2
•

  CX6342

  * 6.5" coaxial speaker
  * 300W(LF) +90W(HF) continuous program power capacity
  * 89dB(LF)+102dB(HF) sensitivity 1w/1m
  * Demodulating ring reduces flux modulation, minimizing electromagnetic distortion
3

Fullange

•

  FR421nd

  1. 80W, 88dB, 90 ~ 16k

  2. 20mm(0.8") CCAW VC

  3. Neodymium ring, rubber edge

  4. Ideal for mini array systems, full range application

0
•

  FC422nd

  1. 80W, 91dB, 134 ~ 18.7k Hz

  2. 20mm(0.8") CCAW VC

  3. Neodymium ring

  4. Ideal for mini array systems, full range application

1
•

  FC322nd

  1. 80W, 89dB, 138 ~ 20k Hz

  2. 20mm(0.8") CCAW VC

  3. Neodymium ring

  4. Ideal for mini array systems, full range application

2
•

  FR321

  1. 80W, 88dB, 110 ~ 15k Hz

  2. 20mm(0.8") CCAW VC

  3. Shorting copper ring, ferrite magnet, rubber edge

  4. Ideal for mini array systems, full range application

3

Other Speakers

•

  NDi6509

  1. 180W, 109dB, 700Hz~18kHz

  2. 75mm(3") 铝扁线音圈

  3. 1.5英寸喉嘴

  4. 短路环，钕磁铁

0
