1.4600watts continuous program power capacity
2.96.5db sensitivity 1w/1m
3.36Hz-700Hz frequency response range
4.7'' high tempreture inside/outside copper voice coil
5.Ventilated voice coil for reduced power compression
6.FEA optimized neodymium magnet assembly allows a very high force factor and a light motor system
7.Ventilated top plate for improved heat dissipation
8.Double silicone Conex spider with optimized compliance
9.Long excursion suspension with linear behavior for large signal
10.BL/Re maximized for loaded applications

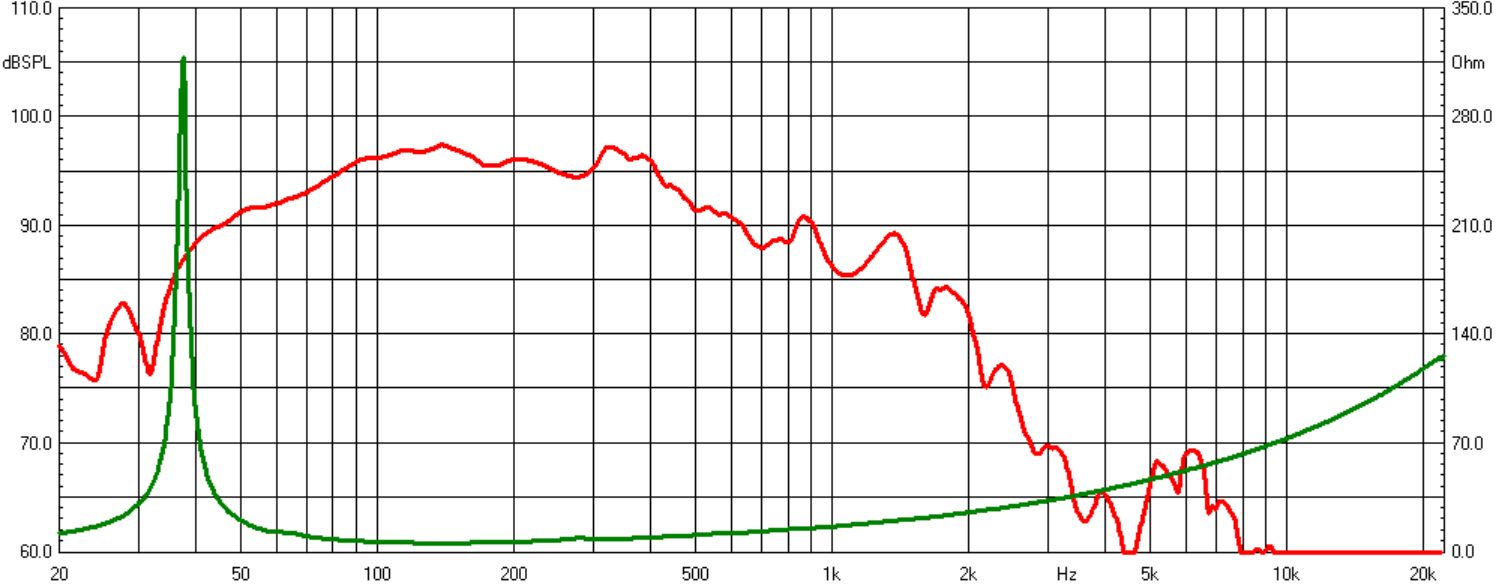

Frequency response measured in a closed enclosure of 600L in an anechoic chamber
Impedance magnitude curve measured in free air

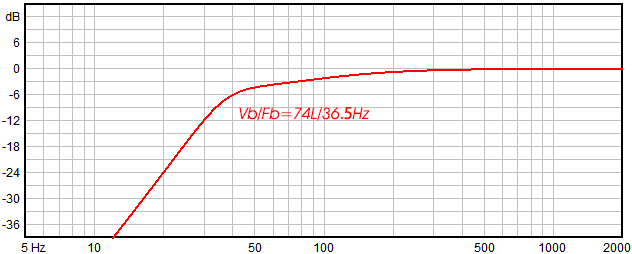

Computer predicted low frequency response
