J6015

J6015

1. 1300 W continuous program power capacity
2. Sensitivity: 99dB 1w/1m
3. 86mm(3.4") high temperature inside/outsdie voice coil with copper clad aluminum wire
4. Paper cone made in USA
5. Dual-forced hyper-venting and 10mm top plate for minimum power compression
6. Ideal for high quality compact 2 or 3-way systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    43 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    650 Watts

  • Program Power2

    1300 Watts

  • Sensitivity(lw/lm)3

    99 dB

  • Frequency Range4

    43 ~ 2800 Hz

  • Minimum Impedance(Zmin)

    6.8 ohm

  • Voice Coil Diameter

    86/3.4 mm/inch

  • Voice Coil Material

    CCAW

  • Former Material

    Glass Fiber

  • Voice Coil Winding Depth

    16.5 mm

  • Number of layers

    2(inside/outside)

  • Magnet gap depth

    10 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.15 T

  • Magnet Outer Diameter/Wgt

    190/95 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 43 Hz

  • DC resistance

    Re 5.6 ohm

  • Mechanical factor

    Qms 7.0

  • Electrical factor

    Qes 0.3

  • Total factor

    Qts 0.29

  • Mechanical compliance

    Cms 0.14 mm/N

  • Mechanical resistance of suspension losses

    Rms 3.8 kg/s

  • Effective Moving Mass

    Mms 99 m

  • Half-space efficiency

    Eff 3.65 %

  • BL Factor

    BL 22 T.m

  • Equivalent Cas air load

    Vas 145 liters

  • Effective piston area

    Sd 0.0866 m^2

  • Max. linear excursion6

    Xmax ± 6 mm

  • Voice coil inductance

    Le1K 1.5 mH

  • Efficiency Bandwidth Product

    EBP 143
  • Mounting Information

  • Overall Diameter

    393 mm

  • Bolt Circle Diameter

    375 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    355 mm

  • Overall Depth

    172 mm

  • Net Weight

    7.9 kg

  • Shipping Weight

    9.1 kg

  • Shipping Box

    430x430x205 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

    Watts

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/J6015-CURVES.jpg

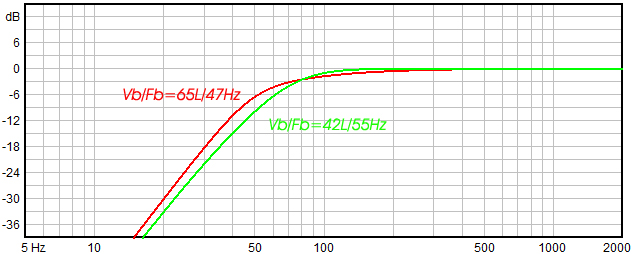

Computer predicted low frequency response

images/upfile/J6015-PREDICTED.jpg
