CX10442

CX10442

1. 500W(LF) +100W(HF) continuous program power capacity
2. 95dB(LF)+102dB(HF) sensitivity 1w/1m
3. 65mm(2.5") LF inside/outside copper clad aluminum voice coil
4. 44mm(1.75") HF edgewound aluminum voice coil
5. 1" PEEK HF driver directly coupled to the pole piece of the woofer provides excellent response in the mid to high frequencies
6. Designed for use as stage monitors or as compact bass reflex systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    Hz

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

    Watts

  • Sensitivity(lw/lm)3

    dB

  • Frequency Range4

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Former Material

  • Voice Coil Winding Depth

    mm

  • Number of layers

  • Magnet gap depth

    mm

  • Basket

    Cast Aluminum

  • Flux Density

    T

  • Magnet Outer Diameter/Wgt

    mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms m

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd m^2

  • Max. linear excursion6

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    250/10 mm/inch

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    250 Watts

  • Program Power2

    500

  • Sensitivity(lw/lm)3

    95

  • Frequency Range4

    50 - 3500 Hz

  • Voice Coil Diameter

    65/2.5 mm/inch

  • Voice Coil Material

    CCAW Copper

  • Voice Coil Winding Depth

    16 mm

  • Number of layers

    2(inside/outside)

  • Magnet Outer Diameter/Wgt

    156/50 mm/oz
  • HF General Specifications

  • Throat Diameter

    25.4/1 mm/inch

  • Rated Impedance

    8 ohm

  • Power handling(2k~18kHz)

        Nominal2

    50 Watts

  •     Continuous Porgram3

    100 Watts

  • Sensitivity3(lw/lm,on axis)

    102 dB

  • Frequency Range4

    700~19k Hz

  • Voice Coil Diameter

    44/1.7 mm/inch

  • Voice Coil Material

    EdgewoundAluminum

  • Diaphragm Material

    PEEK

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs 54 Hz

  • DC resistance

    Re 5.6 ohm

  • Mechanical factor

    Qms 5.0

  • Electrical factor

    Qes 0.31

  • Total factor

    Qts 0.29

  • Mechanical compliance

    Cms 0.23 mm/N

  • Mechanical resistance of suspension losses

    Rms 2.54 kg/s

  • Effective Moving Mass

    Mms 37.6 g

  • Half-space efficiency

    Eff 1.9 %

  • BL Factor

    BL 15.2 T.m

  • Equivalent Cas air load

    Vas 38.4 liters

  • Effective piston area

    Sd 0.0346 ㎡

  • Max. linear excursion5

    Xmax ± 6 mm

  • Voice coil inductance

    Le1K 0.85 mH

  • Efficiency Bandwidth Product

    EBP 174 mH
  • Mounting Information

  • Overall Diameter

    261 mm

  • Bolt Circle Diameter

    246 mm

  • Bolt Hole Diameter

    5.5 mm

  • Baffle Cutout Diameter

    228 mm

  • Overall Depth

    185 mm

  • Net Weight

    6.8 kg

  • Shipping Weight

    7.3 kg

  • Shipping Box

    275x275x200 mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

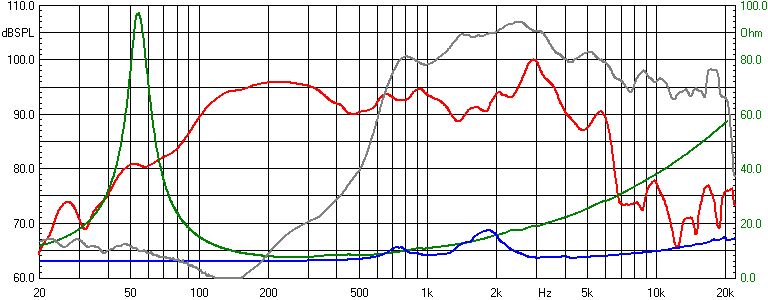

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/CX10442-CURVES.jpg

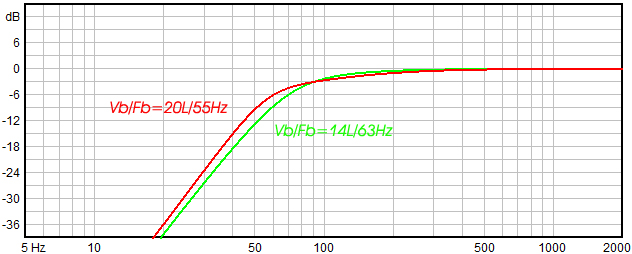

Computer predicted low frequency response

images/upfile/CX10442-PREDICTED.jpg
