Flat Wire Voice Coil

•

  M5012

  1. 900W, 98dB, 50 ~ 2700Hz

  2. 76mm(3") VC with flat aluminum wire

  3. 7DF paper cone, made in USA

  4. Idea for high quality compact 2 or 3-way systems

•

  CXN1044

  1. LF 700W/98dB, HF 100W/106dB

  2. 76mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

  3. 1" HF driver, neodymium magnet

  4. For stage monitors or compact bass reflex systems

•

  CX10442

  1. LF 500W/95dB, HF 100W/102dB

  2. 65mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

  3. 1" PEEK HF driver

  4. For stage monitors or compact bass reflex systems

•

  MB06-38

  1. 200W, 92dB, 125 ~ 9000Hz

  2. 1.5" flat CCAW VC

  3. Copper shorting ring

  4. Ideal for the use in array systems, midrange application

•

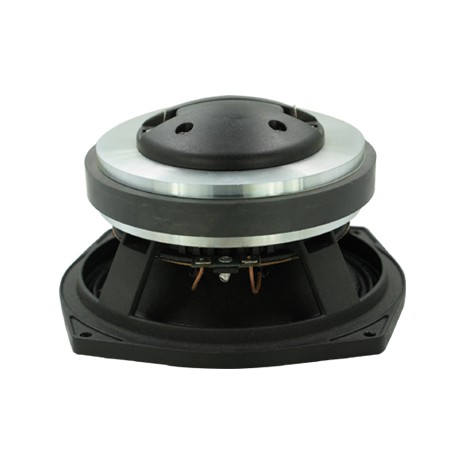

  CX6342

  * 6.5" coaxial speaker
  * 300W(LF) +90W(HF) continuous program power capacity
  * 89dB(LF)+102dB(HF) sensitivity 1w/1m
  * Demodulating ring reduces flux modulation, minimizing electromagnetic distortion
•

  CDi7401

  1. 180W, 108dB, 500~17k Hz

  2. 75mm(3") edgewound aluminum VC

  3. 1.5" exit throat

  4. Aluminum rear cover, phase plug

•

  NDi7409

  1. 180W, 109dB, 700Hz~18kHz

  2. 75mm(3") edgewound aluminum VC

  3. 1.5" exit throat

  4. Copper inductance ring, neodymium magnet

•

  NDi6509

  1. 180W, 109dB, 700Hz~18kHz

  2. 75mm(3") 铝扁线音圈

  3. 1.5英寸喉嘴

  4. 短路环，钕磁铁

•

  NDi4409

  1. 100W, 106dB, 800Hz~19kHz

  2. 44mm(1.7") edgewound aluminum VC

  3. 1.5" exit throat

  4. Neodymium magnet

•

  CDi4401

  1. 120W, 106dB, 900~19k Hz

  2. 44mm(1.7") edgewound aluminum VC

  3. 1" exit throat

  4. Aluminum heat sink cover, phase plug

•

  CDi4402

  1. 110W, 105dB, 900Hz~19kHz

  2. 44mm(1.7") edgewound aluminum VC

  3. 1" exit throat

  4. Aluminum heat sink cover, phase plug
