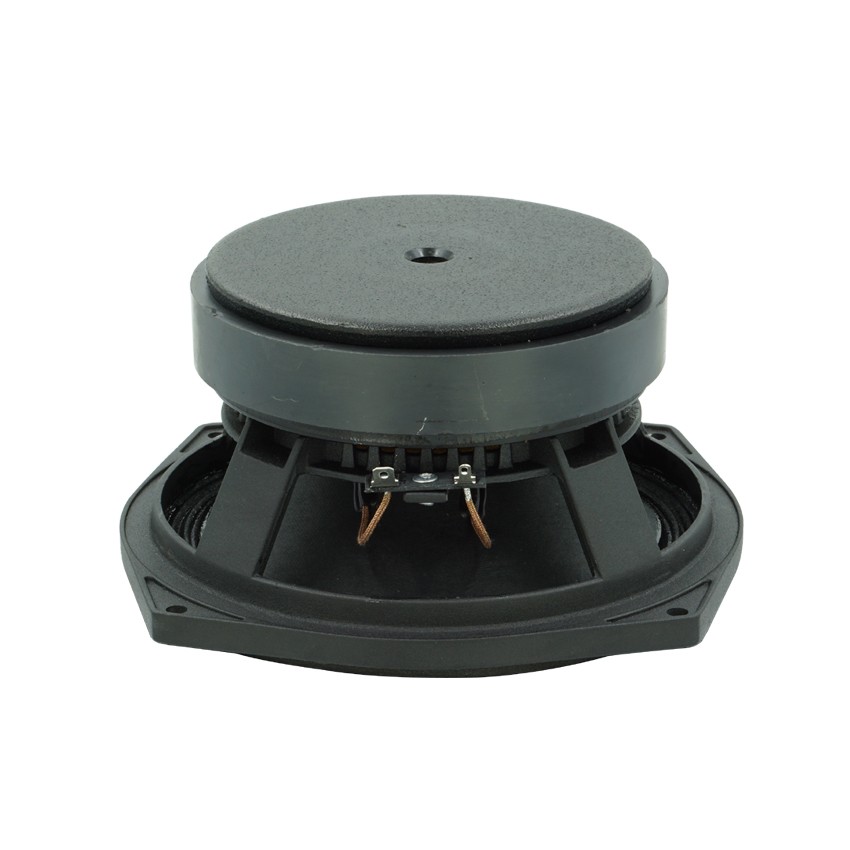

MB06-38

MB06-38

1. 200 W continuous program power capacity
2. High efficiency: 92dB 1w/1m
3. Extended mid response up to 9kHz
4. 1.5" flat copper clad aluminum voice coil
5. Copper shorting ring ensures extremely linear impedance and reduced distortion figure
6. Ideal for the use in array systems, midrange application
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    131 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    100 Watts

  • Program Power2

    200 Watts

  • Sensitivity(lw/lm)3

    92 dB

  • Frequency Range4

    125 ~ 9000 Hz

  • Minimum Impedance(Zmin)

    6.4 ohm

  • Voice Coil Diameter

    38/1.5 mm/inch

  • Voice Coil Material

    Edgewound CCAW

  • Former Material

    Fiberglass

  • Voice Coil Winding Depth

    8 mm

  • Number of layers

    1

  • Magnet gap depth

    6 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.05 T

  • Magnet Outer Diameter/Wgt

    120/30 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 131 Hz

  • DC resistance

    Re 5.4 ohm

  • Mechanical factor

    Qms 3.3

  • Electrical factor

    Qes 1.03

  • Total factor

    Qts 0.78

  • Mechanical compliance

    Cms 0.11 mm/N

  • Mechanical resistance of suspension losses

    Rms 3.36 kg/s

  • Effective Moving Mass

    Mms 13.5 g

  • Half-space efficiency

    Eff 0.62 %

  • BL Factor

    BL 7.65 T.m

  • Equivalent Cas air load

    Vas 2.9 liters

  • Effective piston area

    Sd 0.0139 m^2

  • Max. linear excursion6

    Xmax ±2.5 mm

  • Voice coil inductance

    Le1K 0.16 mH

  • Efficiency Bandwidth Product

    EBP 127
  • Mounting Information

  • Overall Diameter

    162 mm

  • Bolt Circle Diameter

    172 mm

  • Bolt Hole Diameter

    5 mm

  • Baffle Cutout Diameter

    147 mm

  • Overall Depth

    78 mm

  • Net Weight

    2.1 kg

  • Shipping Weight

    2.3 kg

  • Shipping Box

    172x172x95 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

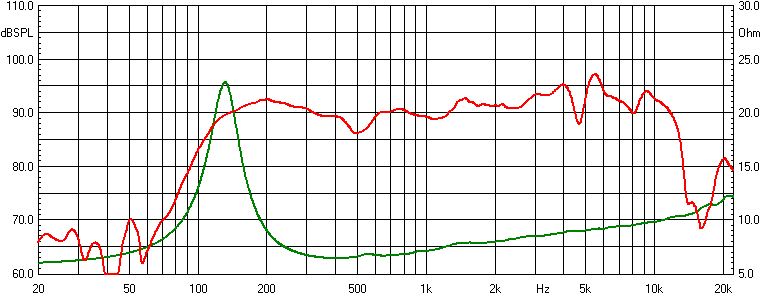

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/MB06-38-Curves.jpg

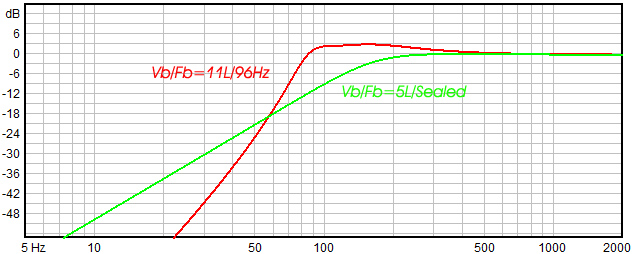

Computer predicted low frequency response

images/upfile/MB06-38-Predicted.jpg
