6inch / 150mm VC

•

  J6521nd

  1.3600W continuous program power capacity

  2.98dB Sens itivity 1w/1m

  3.31Hz~1000Hz frequency response range

  4.6"inside/outside voice coil for improved power-handling and durability

  5.Forced air ventilation on U-yoke forminimum power compressoin

  6.Optimized winding length for extended Xmax

  7.Double spider for improved excursion control and linearithy

  8.Ideal for compact horn-loaded subwo ofer application
0
•

  21DM2000

  1. 4000W, 98dB, 36Hz~800Hz

  2. 152mm(6") inside/outside copper voice coil

  3. Double Ferrite magnet

  4. Triple Conex dampers

1
•

  J6021

  1. 3000W, 97dB, 29Hz~1000Hz

  2. 4.5" inside/outside voice coil

  3. Ferrite magnet, Forced air ventilation

  4. Dual silicone spiders

2
•

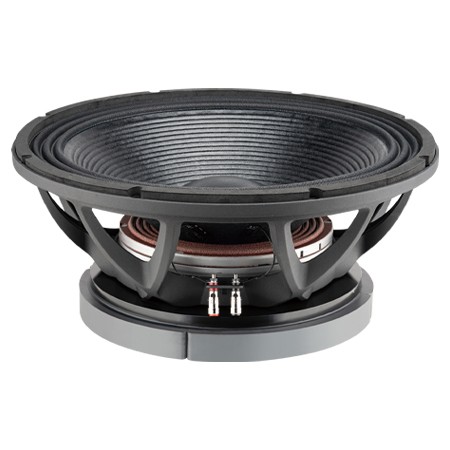

  J6818

  1. 4000W, 98dB, 75Hz ~500Hz

  2. 150mm(6")inside/outside voice coil

  3. Highly resistant adhesives

  4. Double edges and triple dampers

3

5inch / 125mmVC

•

  J6218/2

  1. 2600W, 98dB, 40~1000Hz

  2. 125mm( 5") inside/outside voice coil

  3. Separated dual spiders assembly

  4. Ideal for high quality horn-loaded subwoofer systems



0
•

  J6418

  1. 3000W, 96dB, 41Hz ~1000Hz

  2. 125mm( 5") inside/outside VC

  3. Double silicone spider, waterproof cone

  4. Ideal for compact bass-reflex subwoofer or horn-loaded application
1
•

  J6318nd/2

  1. 3000W, 100dB, 31~1kHz

  2. 125mm(5") inside/outside VC

  3. Neo magnet, U-SONIC cone

  4. Aluminum ring, double silicone spider
2
•

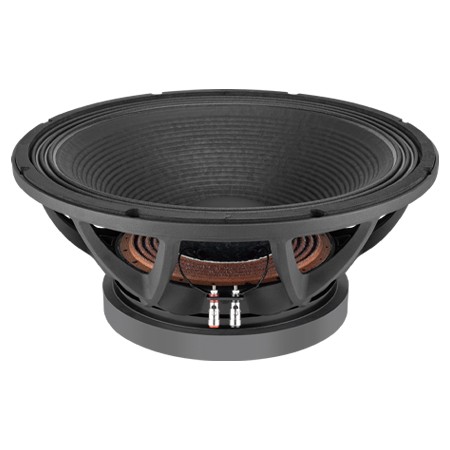

  J6618

  1. 3000W, 98dB, 37Hz~1000Hz

  2. 125mm(5") inside/outside voice coil

  3. Ferrite magnet, double damper

  4. Ideal for high quality loaded subwoofer applications

3

4.5inch / 115mm VC

•

  J6021

  1. 3000W, 97dB, 29Hz~1000Hz

  2. 4.5" inside/outside voice coil

  3. Ferrite magnet, Forced air ventilation

  4. Dual silicone spiders

0
•

  J6118nd/2

  1. 2800W, 97dB, 39~1000Hz

  2. NEO magnet, double silicone spider

  3. 4.5" inside/outside voice coil

  4. Ideal for compact subwoofer application
1

4inch / 100mm VC

•

  S7118

  1. 1600W, 98dB, 32Hz~1000Hz

  2. 4" inside/outside voice coil

  3. Double spiders, ventilated VC

  4. Ideal for compact bass-reflex subwoofer application

0
•

  M5118/2

  1. 1600W, 98dB,32Hz ~1000Hz

  2. 4" inside/outside voice coil

  3. Double spiders, ventilated VC gap

  4. Ideal for compact bass-reflex subwoofer application

1
•

  ND9118s

  1. 1800W, 96dB, 31~1kHz

  2. 4"inside/outside voice coil

  3. Double silicone spider

  4. Neodymium magnet
2
•

  18DM1200

  1. 2400W, 99dB, 36Hz~1000Hz

  2. 100mm(4") inside/outside copper voice coil

  3. Double Ferrite magnet

  4. Ideal for compact vented or bandpass subwoofer usage

3

3.5inch / 86mm VC

•

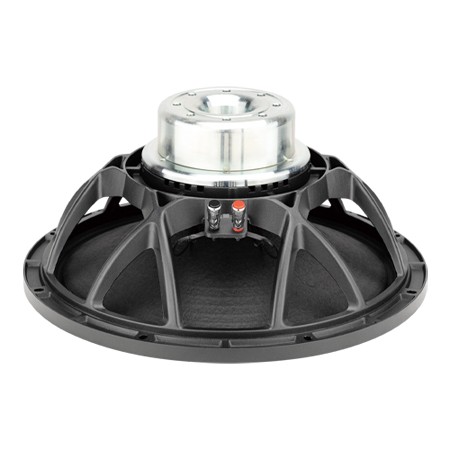

  J6115nd

  1. 1200W, 99dB, 37Hz~2800Hz

  2. 88mm(3.4") inside/outside winding copper clad aluminum VC

  3. Neodymium magnet,USA paper cone

  4. U-yoke air ventilation

0
•

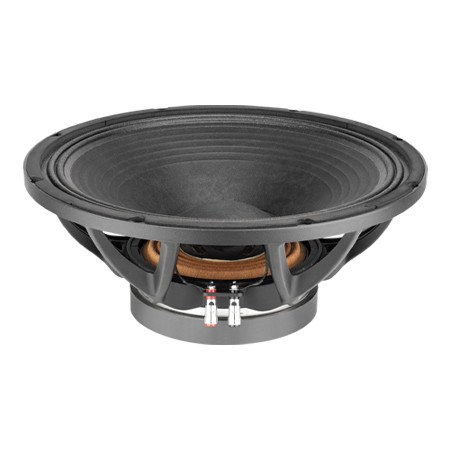

  J6015

  1. 1300W, 99dB,43 ~ 2800Hz

  2. 86mm(3.4") inside/outsdie CCAW VC

  3. USA Paper cone, dual-forced hyper-venting

  4. Ideal for high quality compact 2 or 3-way systems

1
•

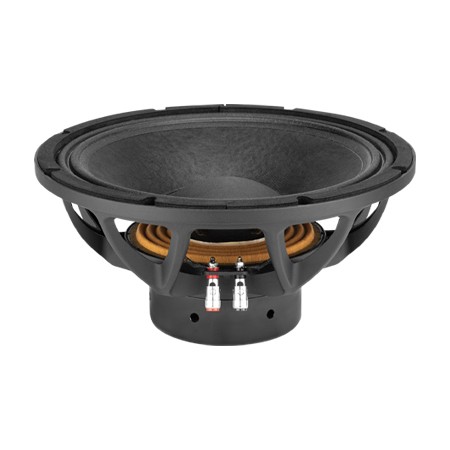

  J6112nd

  1. 1000W, 97dB, 55Hz~3000Hz

  2. 86mm(3.4") inside/outside winding copper clad aluminum VC

  3. Neodymium magnet, RDM paper cone from USA

  4. air ventilation on U-yoke




2
•

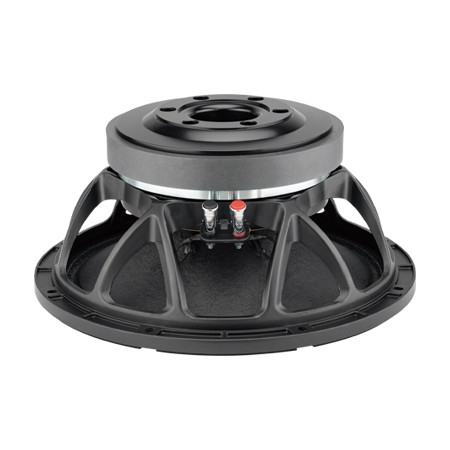

  J6012/2

  1. 1100W, 97.5dB, 55~3000Hz

  2. 3.4" inside/outside CCAW VC

  3. M-roll cloth edge

  4. Idea for high quality compact 2 or 3-way systems

3

3inch / 76mm VC

•

  C15-400

  1. 800W, 97dB, 38 ~ 3000Hz

  2. 76mm(3") inside/outside VC with SV-W wire

  3. Vented back plate, waterproof cone

  4. Ideal for compact 2 or 3-way systems

0
•

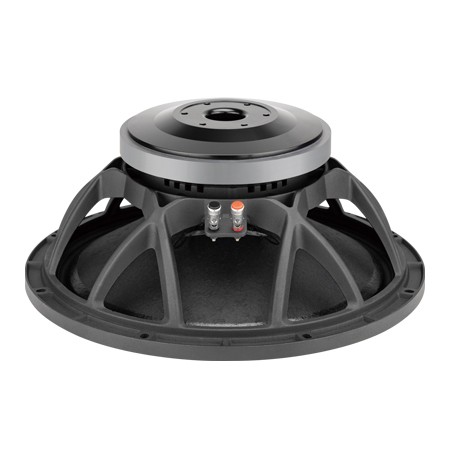

  C15-500

  1. 1000W, 99dB,43 ~ 3000Hz

  2. 76mm(3") inside/outside CCAW VC

  3. Vented back plate, waterproof cone

  4. Ideal for compact 2 or 3-way systems

1
•

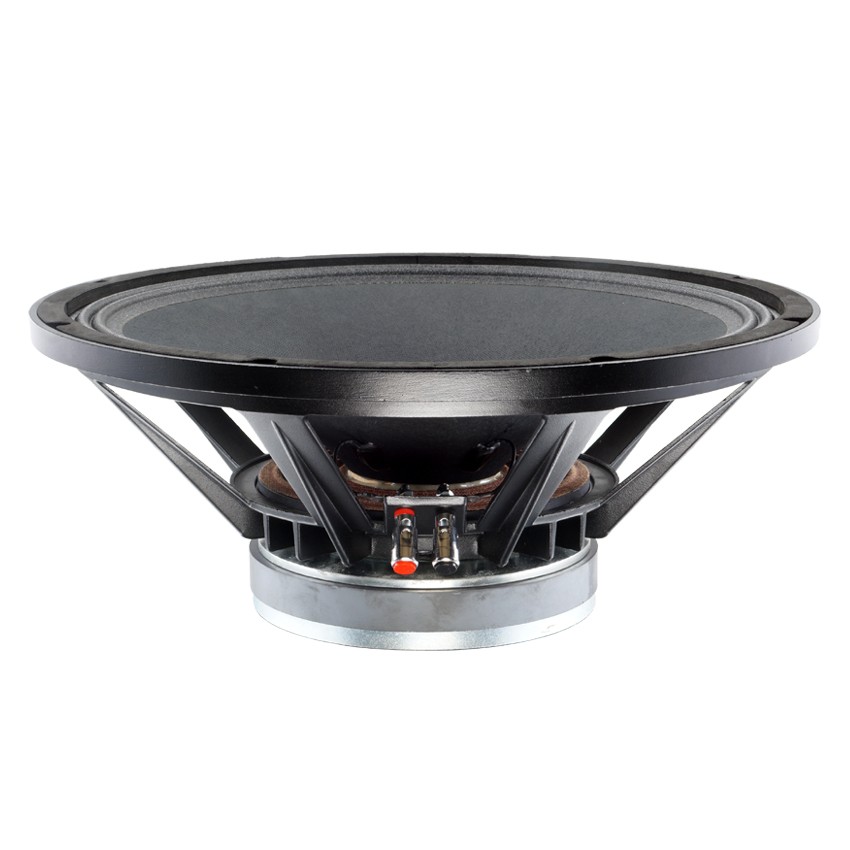

  15BM350

  1. 700W, 97.5dB, 38Hz ~ 3000Hz

  2. 76mm(3") voice coil with SV-W(copper round wire)

  3. Impregnated cone with sealed cloth edge

  4. Ideal for compact 2 or 3-way systems

2
•

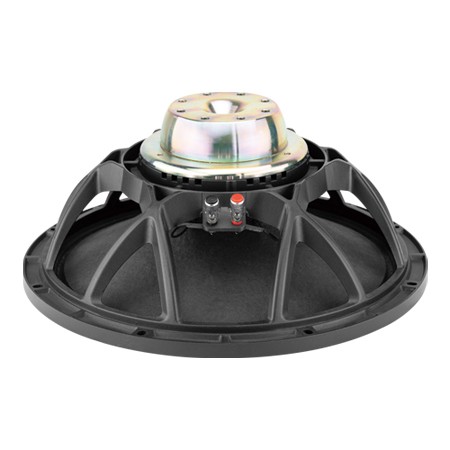

  ND9015w

  1. 1000W, 99dB, 45Hz~2900Hz

  2. 76mm(3") inside/outside winding copper clad aluminum voice coil

  3. FEA Neodymium magnet,USA paper cone

  4. Optimized for the use in compact bass reflex enclosure or line array systems

3

2.5inch / 65mm VC

•

  PA15-65/4ohm

  1. 660W, 95.5dB, 38~3000Hz

  2. Copper wire wounded on polyimide former

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
0
•

  PA15-65/8ohm

  1. 660W, 96dB, 41~3000Hz

  2. Copper wire voice coil

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
1
•

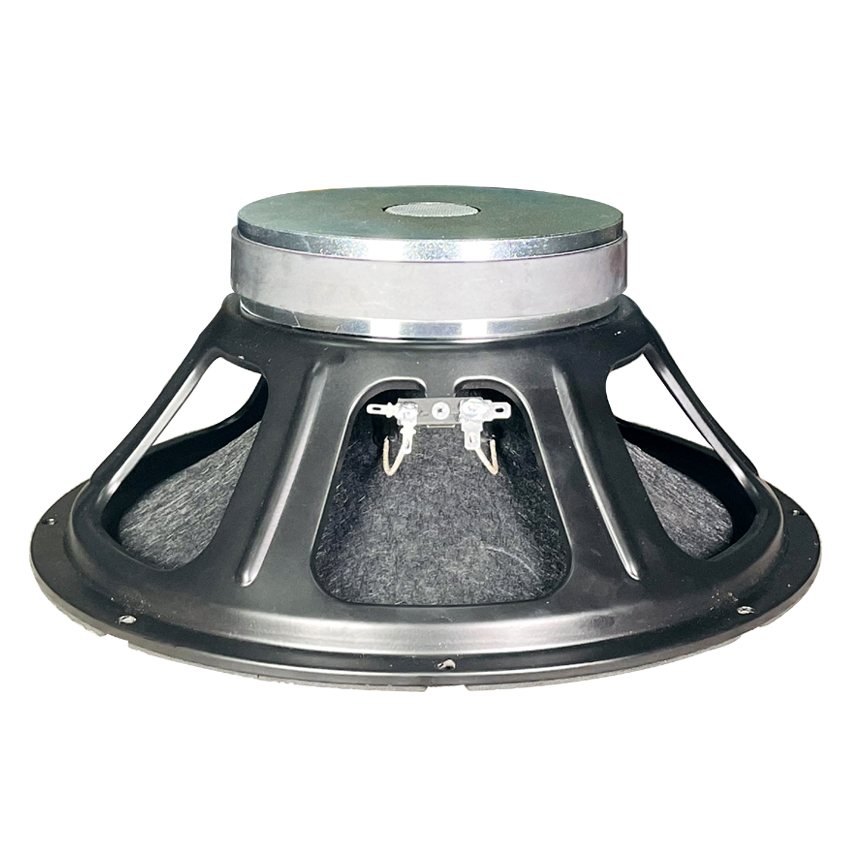

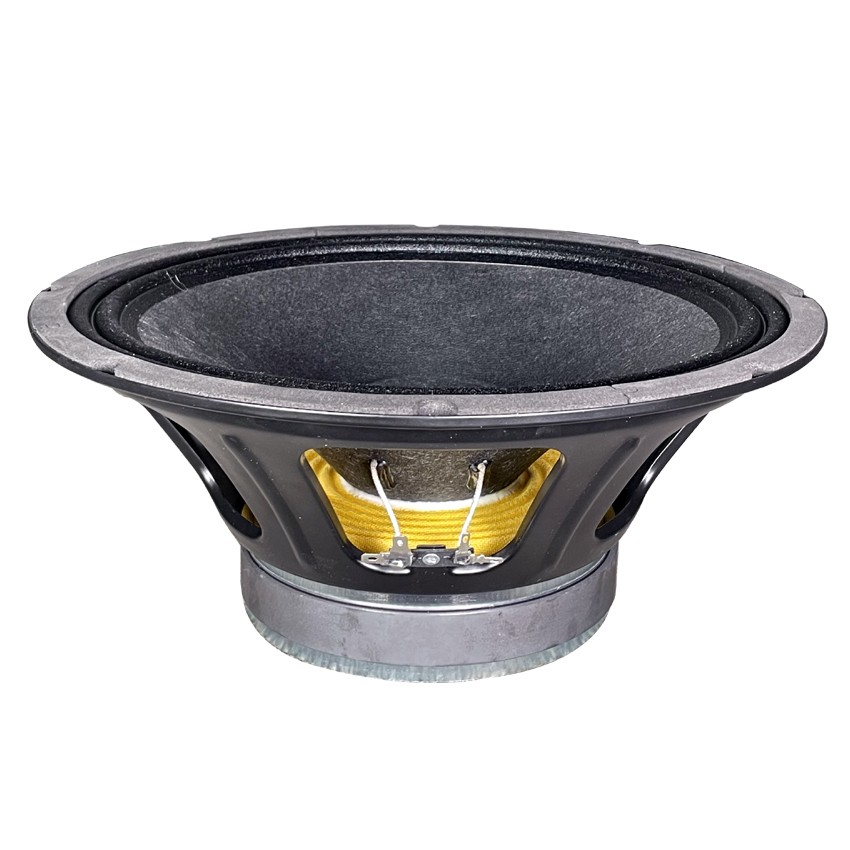

  PA12-65/8ohm

  1. 560W, 95dB, 46~3500Hz

  2. Copper wire

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
2
•

  PA12-65/4ohm

  1. 560W, 95dB, 45~3200Hz

  2. Copper wire VC, Steel basket

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
3

2inch / 50mm VC

•

  PA15-50/4ohm

  1. 500W, 96.5dB, 44~2900Hz

  2. Copper wire wounded on polyimide former

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
0
•

  PA15-50/8ohm

  1. 500W, 95.5dB, 43~2900Hz

  2. Copper wire VC, Fiberglass former

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
1
•

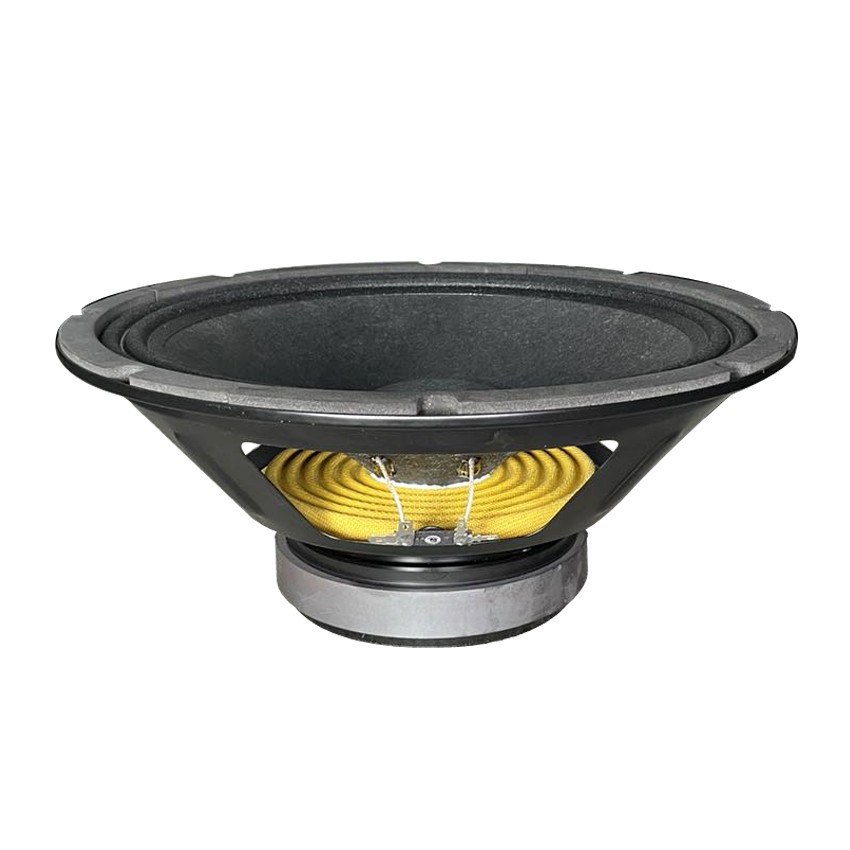

  PA12-50/8ohm

  1. 400W, 95dB, 47~2600Hz
  2. Copper wire voice coil
  3. Long glassfiber impregnated cone
  4. Ideal for compact 2-way systems
2
•

  PA12-50/4ohm

  1. 400W, 95dB, 51~2600Hz

  2.Copper wire voice coil

  3. Long glassfiber impregnated cone

  4. Ideal for compact 2-way systems
3

1.7inch / 44mm VC

•

  CX12441

  1.  LF 800W/ 98dB, HF 120W/106dB

  2. 76mm LF inside/outside CCAW VC, HF edgewound aluminum VC

  3. 1" polyimide HF driver

  4. For stage monitors or compact bass reflex systems

0
•

  CXN1044

  1. LF 700W/98dB, HF 100W/106dB

  2. 76mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

  3. 1" HF driver, neodymium magnet

  4. For stage monitors or compact bass reflex systems

1
•

  CX10442

  1. LF 500W/95dB, HF 100W/102dB

  2. 65mm inside/outside CCAW VC, 44mm HF edgewound aluminum VC

  3. 1" PEEK HF driver

  4. For stage monitors or compact bass reflex systems

2
•

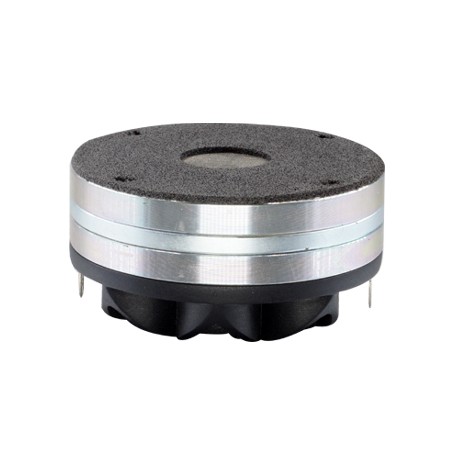

  NDi4409

  1. 100W, 106dB, 800Hz~19kHz

  2. 44mm(1.7") edgewound aluminum VC

  3. 1.5" exit throat

  4. Neodymium magnet

3

1.5inch / 38mm VC

•

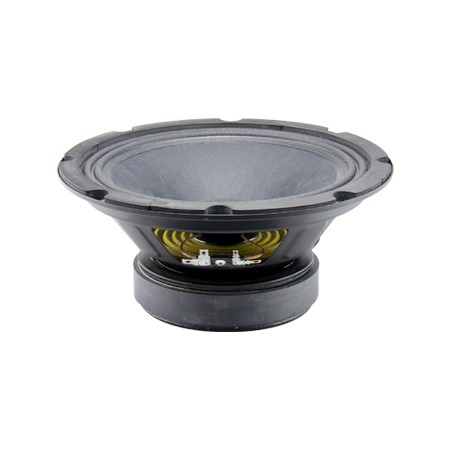

  PS08-38

  1. 300W, 92dB, 75 ~ 6300Hz

  2. 1.5" copper clad aluminum VC

  3. Ideal for the use in trolly, conference systems

0
•

  MB06-38

  1. 200W, 92dB, 125 ~ 9000Hz

  2. 1.5" flat CCAW VC

  3. Copper shorting ring

  4. Ideal for the use in array systems, midrange application

1
•

  V3006m/16

  1. 200W, 93dB, 81 ~ 6000Hz

  2. 38mm(1.5") CCAW VC

  3. FEA optimized magnet system, waterproof cone

  4. Ideal for the use in 2-way line array as mid-bass or 3-way system as midrange

2
•

  ND9306m

  1. 200W, 95dB, 119Hz~5600Hz

  2. 38mm(1.5") CCAW wire wounded on fiberglass

  3. Neodymium magnet system

  4. Ideal for line array or midrange applications

3

1.3inch / 34mm VC

•

  CX6342

  * 6.5" coaxial speaker
  * 300W(LF) +90W(HF) continuous program power capacity
  * 89dB(LF)+102dB(HF) sensitivity 1w/1m
  * Demodulating ring reduces flux modulation, minimizing electromagnetic distortion
0
•

  CD3401

  1. 80W, 104dB, 1000~20k Hz

  2. 34mm(37") edgewound aluminum VC

  3. 1" exit throat

  4. Titanium diaphragm

1

0.8inch / 20mm VC

•

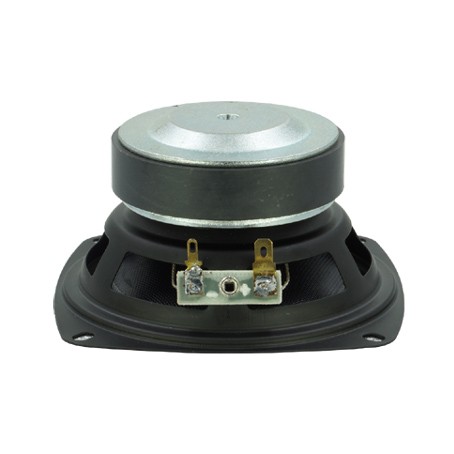

  FR421

  1. 80W, 87dB, 38 ~ 20k Hz

  2. 20mm(0.8") CCAW VC

  3.Shorting copper ring, ferrite magnet, rubber edge

  4. Ideal for mini array systems, full range application
0
•

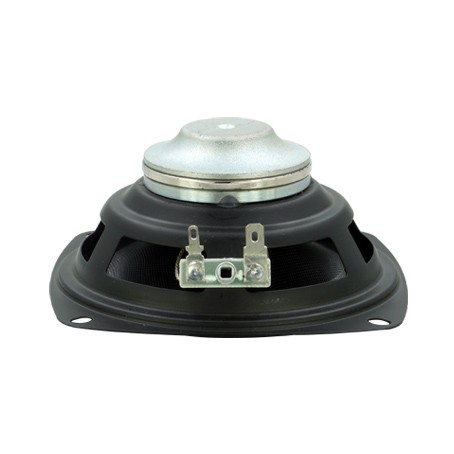

  FR421nd

  1. 80W, 88dB, 90 ~ 16k

  2. 20mm(0.8") CCAW VC

  3. Neodymium ring, rubber edge

  4. Ideal for mini array systems, full range application

1
•

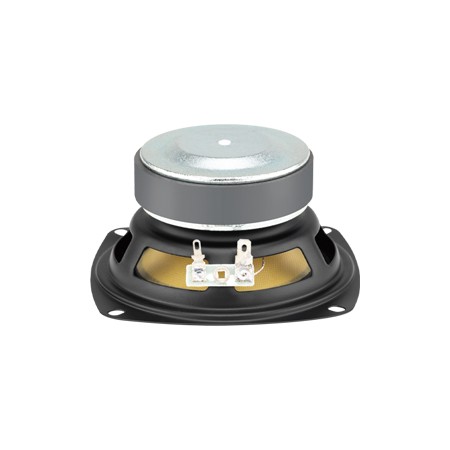

  FC422

  1. 80W, 89.5dB, 134 ~ 17k Hz

  2. 20mm(0.8") CCAW VC

  3. Ferrite ring, shorting copper ring

  4. Ideal for mini array systems, full range application

2
•

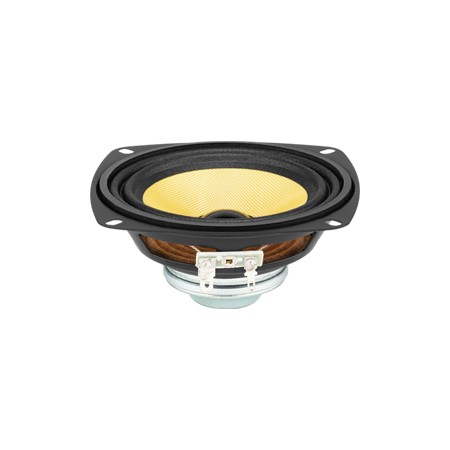

  FC422nd

  1. 80W, 91dB, 134 ~ 18.7k Hz

  2. 20mm(0.8") CCAW VC

  3. Neodymium ring

  4. Ideal for mini array systems, full range application

3
