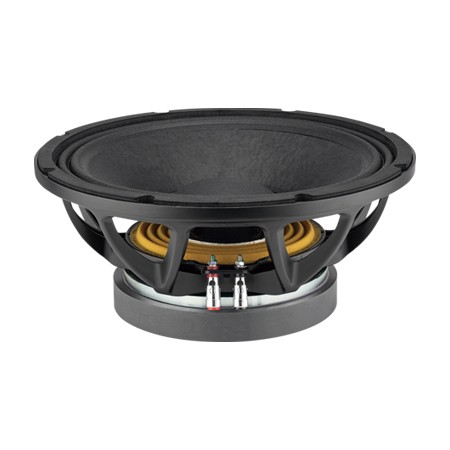

J6012/2

Home > Products > J6012/2

  • J6012/2
  • J6012/2
J6012/2

J6012/2

1. 1100 W continuous program power capacity
2. Sensitivity: 97.5dB 1w/1m
3. 55~3000Hz frequency response range
4. 3.4" inside/outside winding voice coil with CCAW wire
5. M-roll cloth edge with deep corrugations for extended Xmax.
6. Idea for high quality compact 2 or 3-way systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    55 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    550 Watts

  • Program Power2

    1100 Watts

  • Sensitivity(lw/lm)3

    97.5 dB

  • Frequency Range4

    55 ~ 3000 Hz

  • Minimum Impedance(Zmin)

    6.3 ohm

  • Voice Coil Diameter

    86/3.4 mm/inch

  • Voice Coil Material

    CCAW

  • Former Material

    Glass Fiber

  • Voice Coil Winding Depth

    17 mm

  • Number of layers

    2(inside/outside)

  • Magnet gap depth

    10 mm

  • Basket

    Cast Aluminum Cast Aluminum

  • Flux Density

    1.1 T

  • Magnet Outer Diameter/Wgt

    190/95 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 55 Hz

  • DC resistance

    Re 5.0 ohm

  • Mechanical factor

    Qms 13.6

  • Electrical factor

    Qes 0.36

  • Total factor

    Qts 0.35

  • Mechanical compliance

    Cms 0.12 mm/N

  • Mechanical resistance of suspension losses

    Rms 1.78 kg/s

  • Effective Moving Mass

    Mms 70 g

  • Half-space efficiency

    Eff 2.2 %

  • BL Factor

    BL 18.7 T.m

  • Equivalent Cas air load

    Vas 49 liters

  • Effective piston area

    Sd 0.0539 m^2

  • Max. linear excursion6

    Xmax ± 6.7 mm

  • Voice coil inductance

    Le1K 0.85 mH

  • Efficiency Bandwidth Product

    EBP 153
  • Mounting Information

  • Overall Diameter

    316 mm

  • Bolt Circle Diameter

    297 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    283 mm

  • Overall Depth

    145 mm

  • Net Weight

    7.4 kg

  • Shipping Weight

    8.1 kg

  • Shipping Box

    345x345x180 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/J6012-2-CURVES.jpg

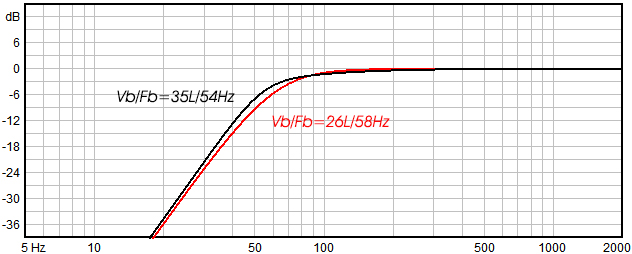

Computer predicted low frequency response

images/upfile/J6012-2-PREDICTED.jpg
