J6318nd/2

J6318nd/2

1. 3000 W continuous program power capacity
2. High sensitivity: 100dB 1w/1m
3. 31Hz ~1000Hz frequency response range
4. 125mm(5") inside/outside voice coil for improved power
5. handling and durability
6. High temperature SH grade neodymium magnet
7. Aluminum demodulating ring for lower distortion
8. U-SONIC paper cone
9. Silicone double Conex dampers with optimized compliance
10. BL/Re maximized for loaded applications
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications
  • Nominal Diameter

    31 Hz
  • Rated Impedance

    8 ohm
  • Nominal Power handling1

    1500 Watts
  • Program Power2

    3000 Watts
  • Sensitivity(lw/lm)3

    100 dB
  • Frequency Range4

    31~1000 Hz
  • Minimum Impedance(Zmin)

    7.5 ohm
  • Voice Coil Diameter

    125/5 mm/inch
  • Voice Coil Material

    Copper
  • Former Material

    Glass Fiber
  • Voice Coil Winding Depth

    25 mm
  • Number of layers

    2(inside/outside)
  • Magnet gap depth

    14 mm
  • Basket

    Cast Aluminum
  • Flux Density

    1.1 T
  • Magnet Outer Diameter/Wgt

    Neodymium
  • Thiele-Small parameters
  • Resonance frequency

    Fs 31 Hz
  • DC resistance

    Re 5.3 ohm
  • Mechanical factor

    Qms 14.1
  • Electrical factor

    Qes 0.17
  • Total factor

    Qts 0.168
  • Mechanical compliance

    Cms 0.104 mm/N
  • Mechanical resistance of suspension losses

    Rms 5.1 kg/s
  • Effective Moving Mass

    Mms 251 g
  • Half-space efficiency

    Eff 2.1 %
  • BL Factor

    BL 39 T.m
  • Equivalent Cas air load

    Vas 225 liters
  • Effective piston area

    Sd 0.1238 m^2
  • Max. linear excursion6

    Xmax ±9.5 mm
  • Voice coil inductance

    Le1K 2.2 mH
  • Efficiency Bandwidth Product

    EBP 152

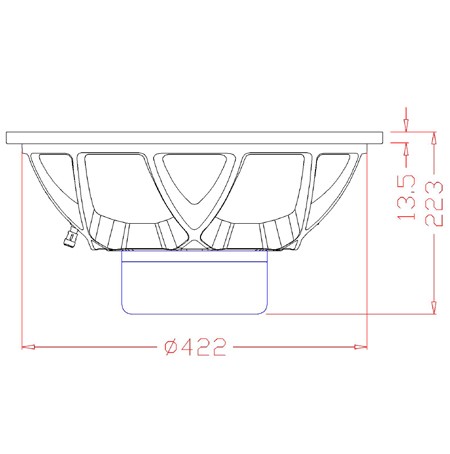

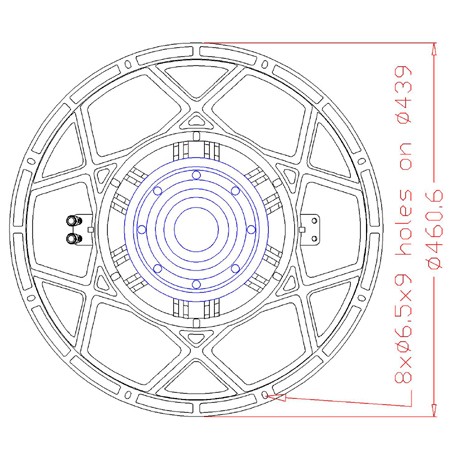

  • Mounting Information
  • Overall Diameter

    461 mm
  • Bolt Circle Diameter

    439 mm
  • Bolt Hole Diameter

    6.5x9.5 mm
  • Baffle Cutout Diameter

    424 mm
  • Overall Depth

    228 mm
  • Net Weight

    13.5 kg
  • Shipping Weight

    14.8 kg
  • Shipping Box

    490x490x255 mm
Technical Specifications
  • LF General Specifications
  • Nominal Diameter

    mm/inch
  • Rated Impedance

    ohm
  • Nominal Power handling1

    Watts
  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz
  • Voice Coil Diameter

    mm/inch
  • Voice Coil Material

    Copper
  • Voice Coil Winding Depth

    mm
  • Number of layers

    (inside/outside)
  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications
  • Throat Diameter

    mm/inch
  • Rated Impedance

    ohm
  • Power handling(2k~18kHz)

        Nominal2

    Watts
  •     Continuous Porgram3

    Watts
  • Sensitivity3(lw/lm,on axis)

    dB
  • Frequency Range4

    Hz
  • Voice Coil Diameter

    mm/inch
  • Voice Coil Material

    Copper
  • Diaphragm Material

    mm
  • Magnet Material

    kg
  • LF Thiele-small Parameters
  • Resonance frequency

    Fs Hz
  • DC resistance

    Re ohm
  • Mechanical factor

    Qms
  • Electrical factor

    Qes
  • Total factor

    Qts
  • Mechanical compliance

    Cms mm/N
  • Mechanical resistance of suspension losses

    Rms mech-ohm
  • Effective Moving Mass

    Mms g
  • Half-space efficiency

    Eff %
  • BL Factor

    BL T.m
  • Equivalent Cas air load

    Vas liters
  • Effective piston area

    Sd
  • Max. linear excursion5

    Xmax mm
  • Voice coil inductance

    Le1K mH
  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information
  • Overall Diameter

    mm
  • Bolt Circle Diameter

    mm
  • Bolt Hole Diameter

    mm
  • Baffle Cutout Diameter

    mm
  • Overall Depth

    mm
  • Net Weight

    kg
  • Shipping Weight

    kg
  • Shipping Box

    mm
Technical Specifications
  • General Specifications
  • Throat Diameter

    mm/inch
  • Rated Impedance

    ohm
  • Power handling

        Nominal2

    Watts
  •     Continuous Porgram3

    Watts
  • Sensitivity4(1w/1m,on axis,on horn)

    dB
  • Frequency Range

    Hz
  • Minimum Impedance(Zmin)

    ohm
  • Voice Coil Diameter

    mm/inch
  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T
  • Magnet Material

  • Mounting Information
  • Overall Diameter

    mm
  • Overall Depth

    mm
  • Net Weight

    kg
  • mounting

    4xM6 holes,90°on 102
Curves

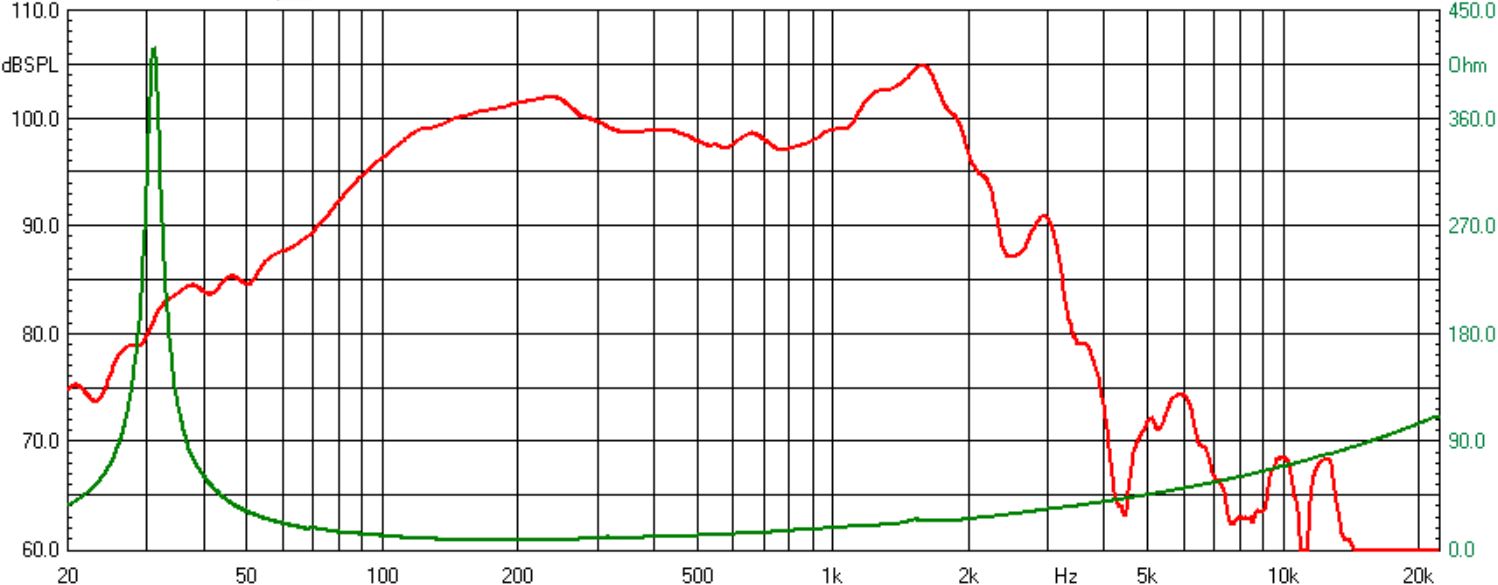

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/J6318nd-CURVES.jpg

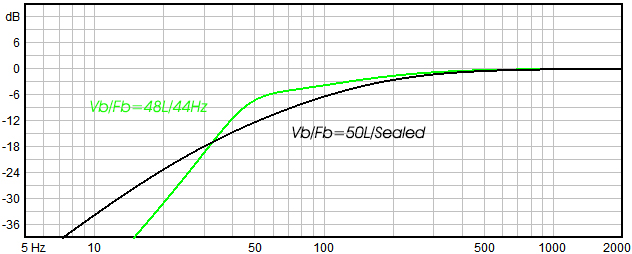

Computer predicted low frequency response

images/upfile/J6318nd-PREDICTED.jpg
