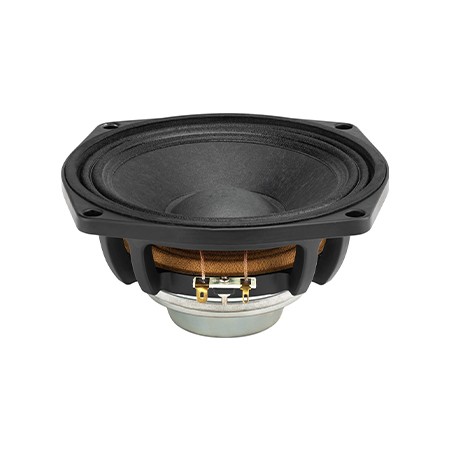

ND9306m

ND9306m

1. 200 W continuous program power capacity
2. High sensitivity 95dB/1w/1m
3. 119 ~ 5600Hz frequency response range
4. 38mm(1.5") CCAW wire wounded on fiberglass
5. Neodymium magnet system
6. Ideal for line array or midrange applications
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications
  • Nominal Diameter

    119 Hz
  • Rated Impedance

    8 ohm
  • Nominal Power handling1

    100 Watts
  • Program Power2

    200 Watts
  • Sensitivity(lw/lm)3

    95 dB
  • Frequency Range4

    119 ~ 5600 Hz
  • Minimum Impedance(Zmin)

    6.5 ohm
  • Voice Coil Diameter

    38/1.5 mm/inch
  • Voice Coil Material

    CCAW
  • Former Material

    Fiberglass
  • Voice Coil Winding Depth

    12 mm
  • Number of layers

    2
  • Magnet gap depth

    6 mm
  • Basket

    Cast Aluminum
  • Flux Density

    1.3 T
  • Magnet Outer Diameter/Wgt

    Neodymium
  • Thiele-Small parameters
  • Resonance frequency

    Fs 119 Hz
  • DC resistance

    Re 5.4 ohm
  • Mechanical factor

    Qms 15.1
  • Electrical factor

    Qes 0.49
  • Total factor

    Qts 0.47
  • Mechanical compliance

    Cms 0.13 mm/N
  • Mechanical resistance of suspension losses

    Rms 0.66 kg/s
  • Effective Moving Mass

    Mms 13.3 g
  • Half-space efficiency

    Eff 1.2 %
  • BL Factor

    BL 10.6 T.m
  • Equivalent Cas air load

    Vas 3.6 liters
  • Effective piston area

    Sd 0.0137 m^2
  • Max. linear excursion6

    Xmax ±4.5 mm
  • Voice coil inductance

    Le1K 0.29 mH
  • Efficiency Bandwidth Product

    EBP 243
  • Mounting Information
  • Overall Diameter

    162 mm
  • Bolt Circle Diameter

    172 mm
  • Bolt Hole Diameter

    5 mm
  • Baffle Cutout Diameter

    147 mm
  • Overall Depth

    82 mm
  • Net Weight

    1.2 kg
  • Shipping Weight

    1.4 kg
  • Shipping Box

    172x172x95 mm
Technical Specifications
  • LF General Specifications
  • Nominal Diameter

    mm/inch
  • Rated Impedance

    ohm
  • Nominal Power handling1

    Watts
  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz
  • Voice Coil Diameter

    mm/inch
  • Voice Coil Material

    Copper
  • Voice Coil Winding Depth

    mm
  • Number of layers

    (inside/outside)
  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications
  • Throat Diameter

    mm/inch
  • Rated Impedance

    ohm
  • Power handling(2k~18kHz)

        Nominal2

    Watts
  •     Continuous Porgram3

    Watts
  • Sensitivity3(lw/lm,on axis)

    dB
  • Frequency Range4

    Hz
  • Voice Coil Diameter

    mm/inch
  • Voice Coil Material

    Copper
  • Diaphragm Material

    mm
  • Magnet Material

    kg
  • LF Thiele-small Parameters
  • Resonance frequency

    Fs Hz
  • DC resistance

    Re ohm
  • Mechanical factor

    Qms
  • Electrical factor

    Qes
  • Total factor

    Qts
  • Mechanical compliance

    Cms mm/N
  • Mechanical resistance of suspension losses

    Rms mech-ohm
  • Effective Moving Mass

    Mms g
  • Half-space efficiency

    Eff %
  • BL Factor

    BL T.m
  • Equivalent Cas air load

    Vas liters
  • Effective piston area

    Sd
  • Max. linear excursion5

    Xmax mm
  • Voice coil inductance

    Le1K mH
  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information
  • Overall Diameter

    mm
  • Bolt Circle Diameter

    mm
  • Bolt Hole Diameter

    mm
  • Baffle Cutout Diameter

    mm
  • Overall Depth

    mm
  • Net Weight

    kg
  • Shipping Weight

    kg
  • Shipping Box

    mm
Technical Specifications
  • General Specifications
  • Throat Diameter

    mm/inch
  • Rated Impedance

    ohm
  • Power handling

        Nominal2

    Watts
  •     Continuous Porgram3

    Watts
  • Sensitivity4(1w/1m,on axis,on horn)

    dB
  • Frequency Range

    Hz
  • Minimum Impedance(Zmin)

    ohm
  • Voice Coil Diameter

    mm/inch
  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T
  • Magnet Material

  • Mounting Information
  • Overall Diameter

    mm
  • Overall Depth

    mm
  • Net Weight

    kg
  • mounting

    4xM6 holes,90°on 102
Curves

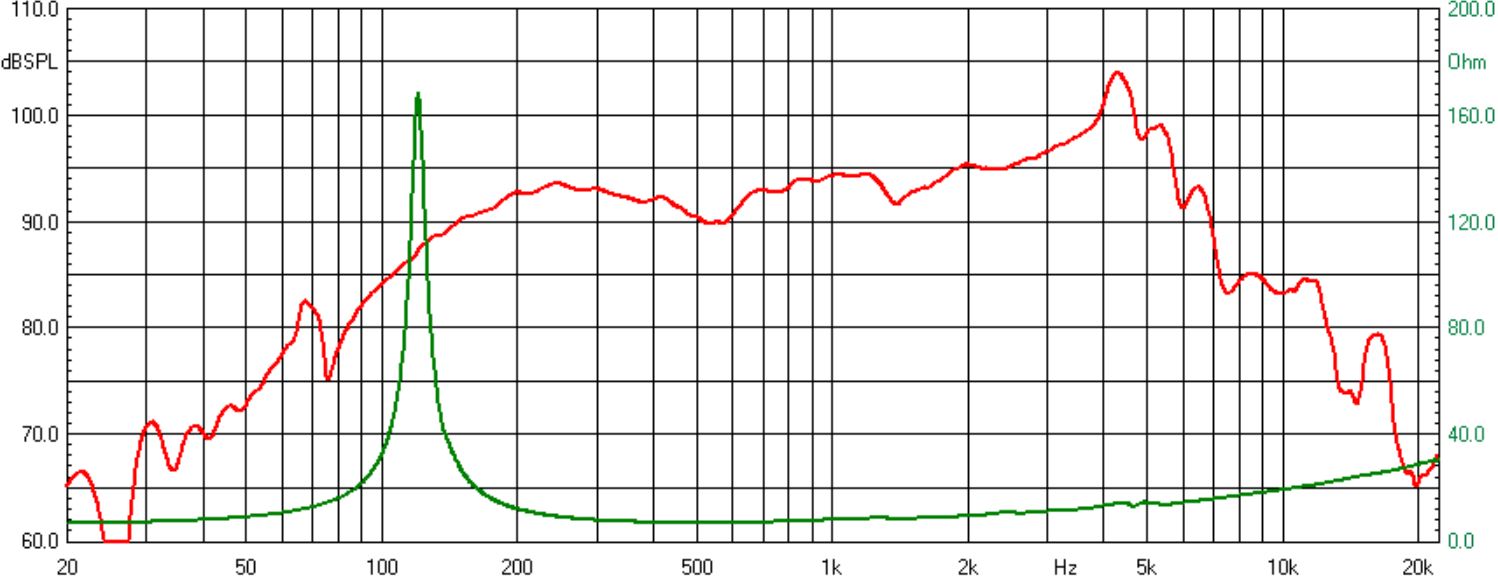

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/ND9306m-CURVES.jpg

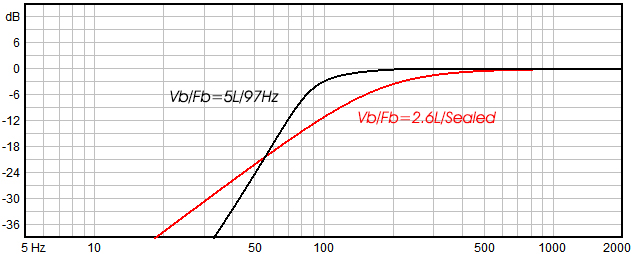

Computer predicted low frequency response

images/upfile/ND9306m-PREDICTED.jpg
