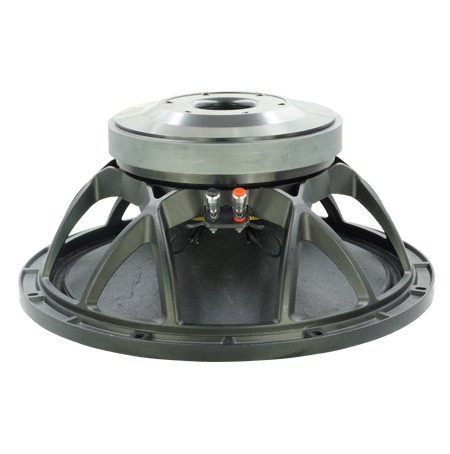

M5415/2

M5415/2

1. 1600 W continuous program power capacity
2. Sensitivity: 99dB 1w/1m
3. 100mm(4") high temperature inside/outsdie voice coil with copper clad aluminum wire
4. FEA designed ferrite magnetic
5. Vented back plate increases airflow to provide enhanced cooling
6. Aluminum demodulating ring reduces distortion and extends high frequency response to 2.8kHz
7. Ideal for compact 2 or 3-way systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    40 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    800 Watts

  • Program Power2

    1600 Watts

  • Sensitivity(lw/lm)3

    99 dB

  • Frequency Range4

    40 ~ 2800 Hz

  • Minimum Impedance(Zmin)

    7.0 ohm

  • Voice Coil Diameter

    100/4 mm/inch

  • Voice Coil Material

    CCAW

  • Former Material

    Glass Fiber

  • Voice Coil Winding Depth

    22 mm

  • Number of layers

    2(inside/outside)

  • Magnet gap depth

    12 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.1 T

  • Magnet Outer Diameter/Wgt

    220/125 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 40 Hz

  • DC resistance

    Re 5.7 ohm

  • Mechanical factor

    Qms 11.5

  • Electrical factor

    Qes 0.31

  • Total factor

    Qts 0.30

  • Mechanical compliance

    Cms 0.14 mm/N

  • Mechanical resistance of suspension losses

    Rms 2.4 kg/s

  • Effective Moving Mass

    Mms 107 g

  • Half-space efficiency

    Eff 3.3 %

  • BL Factor

    BL 22.4 T.m

  • Equivalent Cas air load

    Vas 156 liters

  • Effective piston area

    Sd 0.0887 m^2

  • Max. linear excursion6

    Xmax ± 7 mm

  • Voice coil inductance

    Le1K 1.5 mH

  • Efficiency Bandwidth Product

    EBP 129

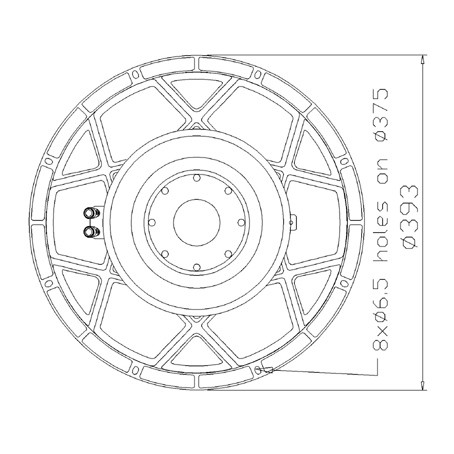

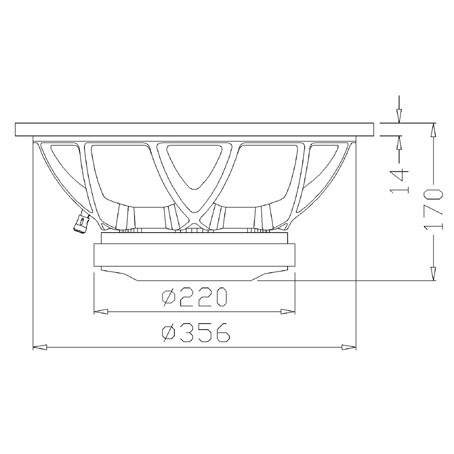

  • Mounting Information

  • Overall Diameter

    393 mm

  • Bolt Circle Diameter

    375 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    355 mm

  • Overall Depth

    170 mm

  • Net Weight

    11 kg

  • Shipping Weight

    11.7 kg

  • Shipping Box

    425x425x215 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

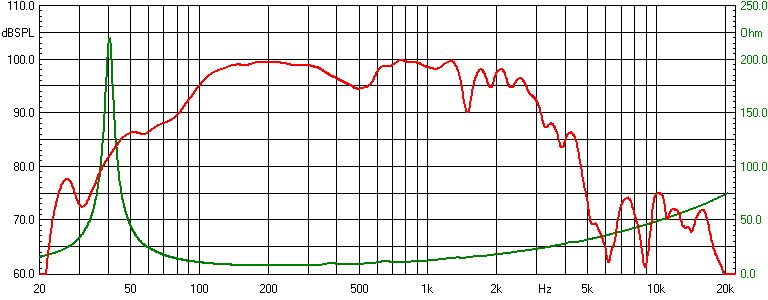

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/M5415-2-Curves.jpg

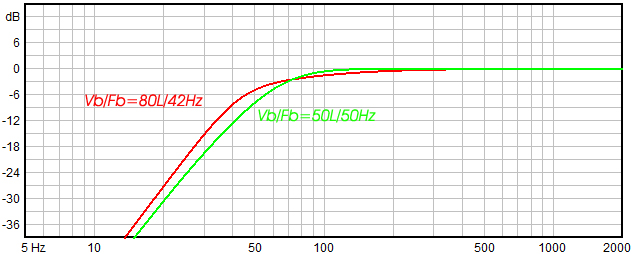

Computer predicted low frequency response

images/upfile/M5415-2-PREDICTED.jpg
