ND9208w

Home > Products > ND9208w

  • ND9208w
  • ND9208w

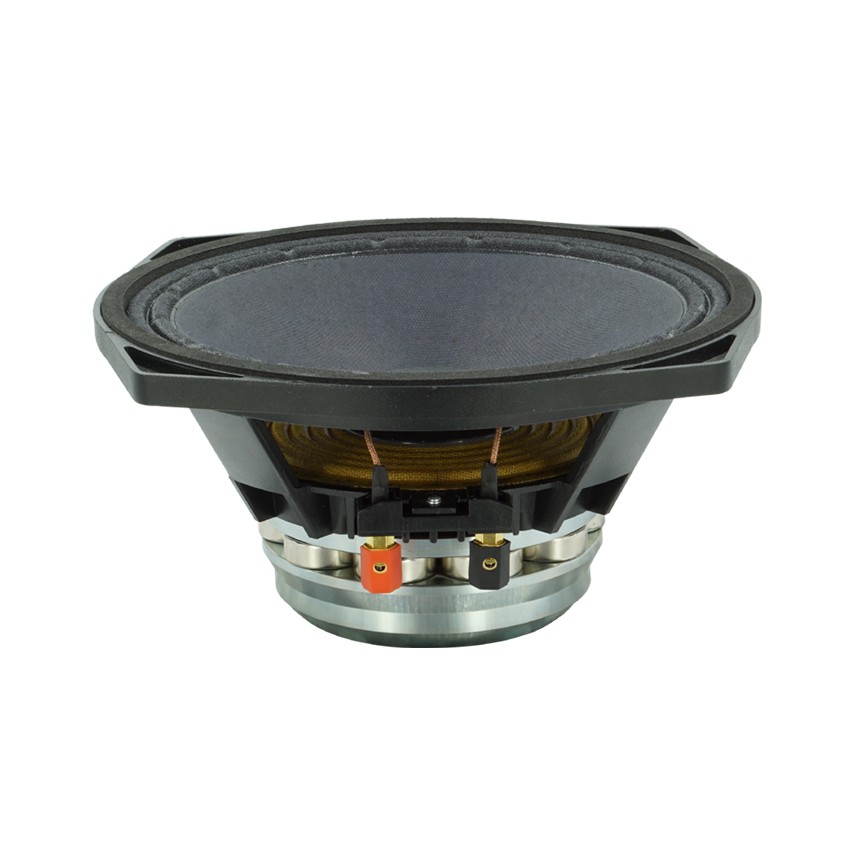

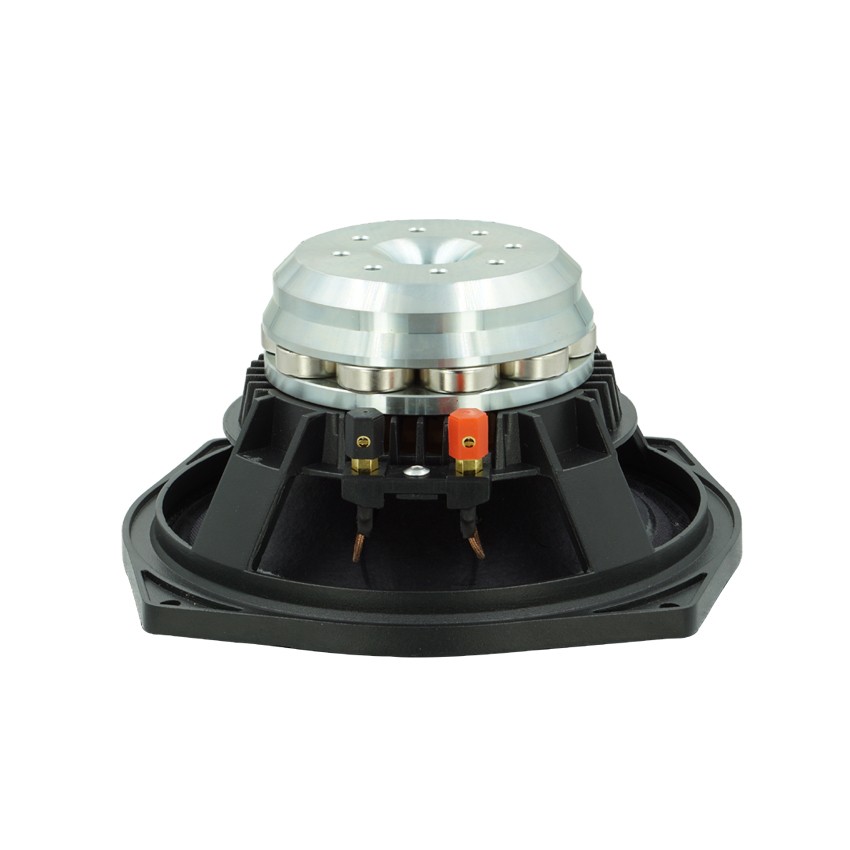

ND9208w

ND9208w

1. 500 W continuous program power capacity
2. High sensitivity 95dB/1w/1m
3. Extended smooth response up to 4000Hz
4. 2"high temperature voice coil
5. Neodymium magnet system
6. Ideal for line array or 2-way fullrange systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    69 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    250 Watts

  • Program Power2

    500 Watts

  • Sensitivity(lw/lm)3

    95 dB

  • Frequency Range4

    63~4000 Hz

  • Minimum Impedance(Zmin)

    6.7 ohm

  • Voice Coil Diameter

    50/2 mm/inch

  • Voice Coil Material

    Copper

  • Former Material

    Polyimide

  • Voice Coil Winding Depth

    18 mm

  • Number of layers

    2(Inside/outside)

  • Magnet gap depth

    8 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.6 T

  • Magnet Outer Diameter/Wgt

    Neodymium
  • Thiele-Small parameters

  • Resonance frequency

    Fs 69 Hz

  • DC resistance

    Re 5.3 ohm

  • Mechanical factor

    Qms 5.55

  • Electrical factor

    Qes 0.29

  • Total factor

    Qts 0.27

  • Mechanical compliance

    Cms 0.2 mm/N

  • Mechanical resistance of suspension losses

    Rms 2.06 mech-ohm

  • Effective Moving Mass

    Mms 26.3 g

  • Half-space efficiency

    Eff 1.5 %

  • BL Factor

    BL 14.5 T.m

  • Equivalent Cas air load

    Vas 13.4 liters

  • Effective piston area

    Sd 0.0219 m^2

  • Max. linear excursion6

    Xmax ±6.5 mm

  • Voice coil inductance

    Le1K 0.54 mH

  • Efficiency Bandwidth Product

    EBP 237
  • Mounting Information

  • Overall Diameter

    200 mm

  • Bolt Circle Diameter

    212 mm

  • Bolt Hole Diameter

    5.5 mm

  • Baffle Cutout Diameter

    180 mm

  • Overall Depth

    100 mm

  • Net Weight

    2.4 kg

  • Shipping Weight

    2.6 kg

  • Shipping Box

    220x220x110 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

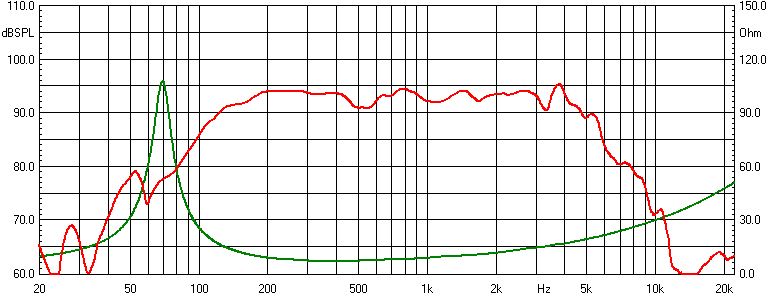

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/ND9208w-curves.jpg

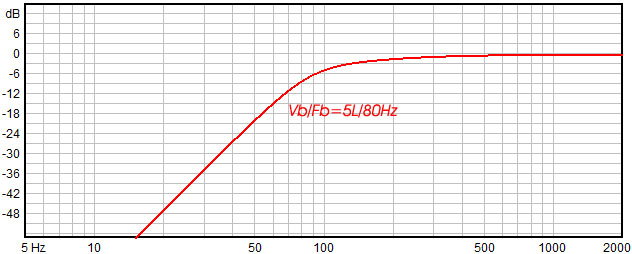

Computer predicted low frequency response

images/upfile/ND9008w-Predicted.jpg
