U8015

U8015

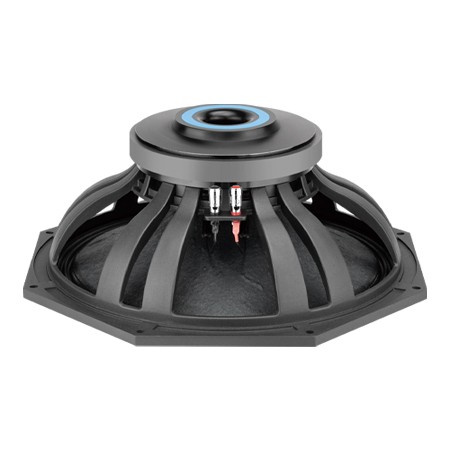

1. 800 W continuous program power capacity
2. High sensitivity: 99dB 1w/1m
3. Very smooth response up to 3000Hz
4. 76mm(3") copper clad aluminum voice coil
5. Non pressed cone to supply additional damping
6. Unique eight-sided (Octagon) die-cast aluminum basket
7. FEA optimized magnetic circuit; a colorful aluminum ring on the back plate
8. Ideal for compact reflex enclosures and two way systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    38.5 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    400 Watts

  • Program Power2

    800 Watts

  • Sensitivity(lw/lm)3

    99 dB

  • Frequency Range4

    38 ~ 3000 Hz

  • Minimum Impedance(Zmin)

    6.7 ohm

  • Voice Coil Diameter

    76/3 mm/inch

  • Voice Coil Material

    CCAW

  • Former Material

    Glass Fiber

  • Voice Coil Winding Depth

    18.7 mm

  • Number of layers

    2

  • Magnet gap depth

    10 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.15 T

  • Magnet Outer Diameter/Wgt

    190/78 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 38.5 Hz

  • DC resistance

    Re 5.4 ohm

  • Mechanical factor

    Qms 4.8

  • Electrical factor

    Qes 0.37

  • Total factor

    Qts 0.34

  • Mechanical compliance

    Cms 0.19 mm/N

  • Mechanical resistance of suspension losses

    Rms 4.46 kg/s

  • Effective Moving Mass

    Mms 88.5 g

  • Half-space efficiency

    Eff 3.2 %

  • BL Factor

    BL 17.7 T.m

  • Equivalent Cas air load

    Vas 217 liters

  • Effective piston area

    Sd 0.0892 m^2

  • Max. linear excursion6

    Xmax ± 7 mm

  • Voice coil inductance

    Le1K 0.96 mH

  • Efficiency Bandwidth Product

    EBP 104
  • Mounting Information

  • Overall Diameter

    390 mm

  • Bolt Circle Diameter

    398 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    353 mm

  • Overall Depth

    165 mm

  • Net Weight

    7.1 kg

  • Shipping Weight

    8.2 kg

  • Shipping Box

    430x430x205 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

    Watts

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

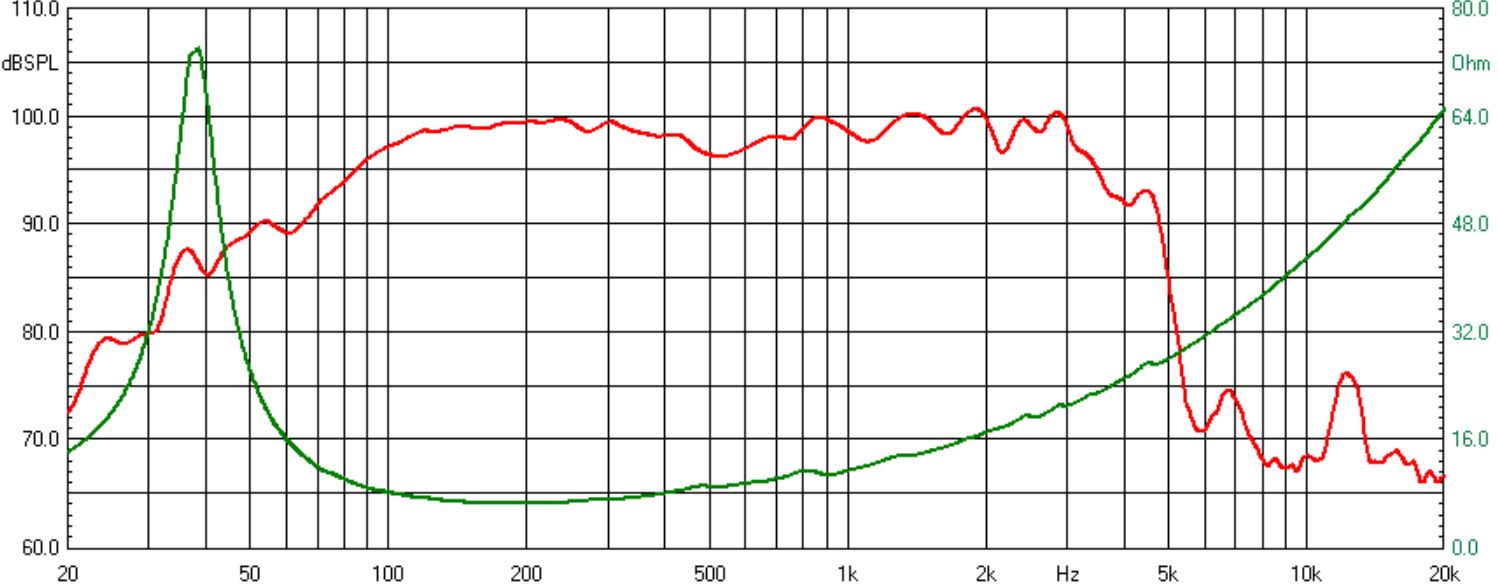

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/U8015-CURVES.jpg

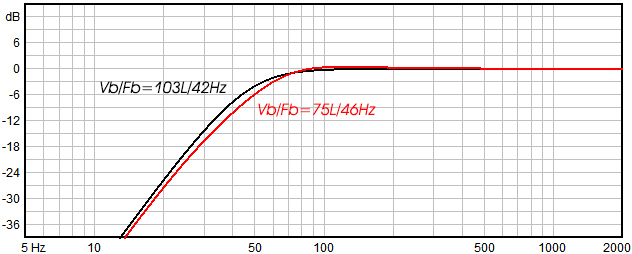

Computer predicted low frequency response

images/upfile/U8015-PREDICTED.jpg
