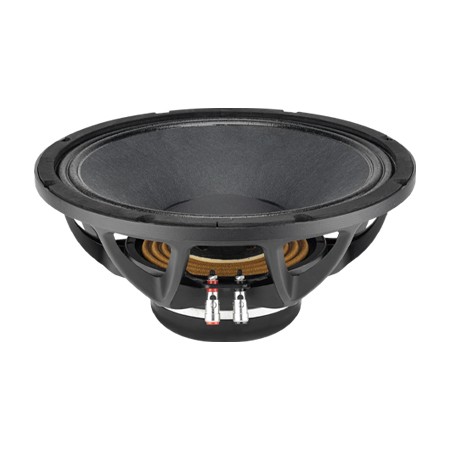

ND9512m

ND9512m

1. 800 W continuous program power capacity
2. High efficiency: 101dB 1w/1m
3. Smooth frequency response up to 3kHz
4. 76mm(3") aluminum voice coil wounded on Kapton former
5. High grade neodymium magnet allows a very light yet powerful motor assembly
6. Special treated cloth edge for reducing distortion
7. Optimized for the use in line array systems or compact reflex enclosure
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    55 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    400 Watts

  • Program Power2

    800 Watts

  • Sensitivity(lw/lm)3

    101 dB

  • Frequency Range4

    43~3000 Hz

  • Minimum Impedance(Zmin)

    7.6 ohm

  • Voice Coil Diameter

    76/3 mm/inch

  • Voice Coil Material

    Aluminum

  • Former Material

    Polyimide

  • Voice Coil Winding Depth

    18 mm

  • Number of layers

    2

  • Magnet gap depth

    10 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.45 T

  • Magnet Outer Diameter/Wgt

  • Thiele-Small parameters

  • Resonance frequency

    Fs 55 Hz

  • DC resistance

    Re 5.6 ohm

  • Mechanical factor

    Qms 8.1

  • Electrical factor

    Qes 0.17

  • Total factor

    Qts 0.15

  • Mechanical compliance

    Cms 0.24 mm/N

  • Mechanical resistance of suspension losses

    Rms 1.84 kg/s

  • Effective Moving Mass

    Mms 53 g

  • Half-space efficiency

    Eff 5.12 %

  • BL Factor

    BL 23 T.m

  • Equivalent Cas air load

    Vas 94 liters

  • Effective piston area

    Sd 0.0531 m^2

  • Max. linear excursion6

    Xmax ±6.5 mm

  • Voice coil inductance

    Le1K 0.68 mH

  • Efficiency Bandwidth Product

    EBP 343
  • Mounting Information

  • Overall Diameter

    316 mm

  • Bolt Circle Diameter

    297 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    283 mm

  • Overall Depth

    140 mm

  • Net Weight

    5 kg

  • Shipping Weight

    5.7 kg

  • Shipping Box

    345x345x180 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

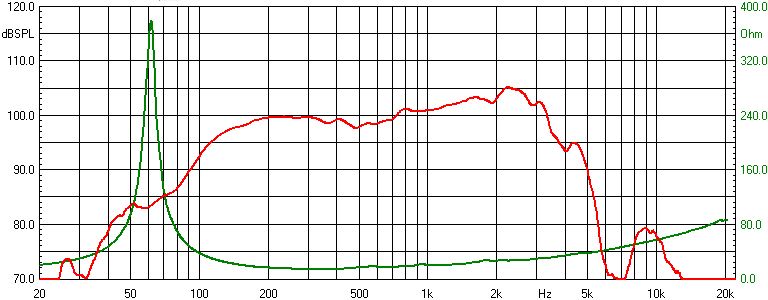

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/ND9512m-16-CURVES.jpg

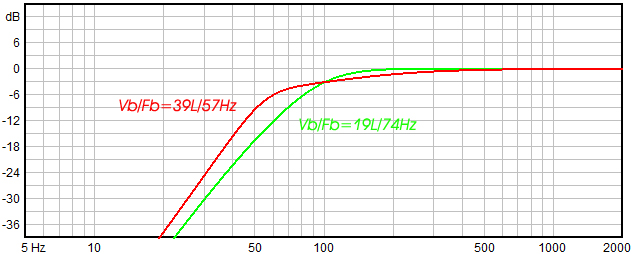

Computer predicted low frequency response

images/upfile/ND9512m-16-PREDICTED.jpg
