PS10-50

PS10-50

1. 300 W continuous program power capacity
2. 94dB Sensitivity 1w/1m
3. 52 ~ 2800Hz frequency response range
4. 2" copper voice coil wounded on fiberglass former
5. Semi-pressed paper cone with pressed dust cap
6. Ideal for compact multi-way systems or woofer application
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    55 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    150 Watts

  • Program Power2

    300 Watts

  • Sensitivity(lw/lm)3

    94 dB

  • Frequency Range4

    52 ~ 2800 Hz

  • Minimum Impedance(Zmin)

    6.3 ohm

  • Voice Coil Diameter

    50/2 mm/inch

  • Voice Coil Material

    Copper

  • Former Material

    Fiberglass

  • Voice Coil Winding Depth

    18 mm

  • Number of layers

    2

  • Magnet gap depth

    8 mm

  • Basket

    Pressed Steel Cast Aluminum

  • Flux Density

    1.1 T

  • Magnet Outer Diameter/Wgt

    145/42 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 55 Hz

  • DC resistance

    Re 5.3 ohm

  • Mechanical factor

    Qms 9.9

  • Electrical factor

    Qes 0.45

  • Total factor

    Qts 0.43

  • Mechanical compliance

    Cms 0.24 mm/N

  • Mechanical resistance of suspension losses

    Rms 1.22 kg/s

  • Effective Moving Mass

    Mms 34.9 g

  • Half-space efficiency

    Eff 1.5 %

  • BL Factor

    BL 11.9 T.m

  • Equivalent Cas air load

    Vas 42 liters

  • Effective piston area

    Sd 0.0353 m^2

  • Max. linear excursion6

    Xmax ± 6.5 mm

  • Voice coil inductance

    Le1K 1.0 mH

  • Efficiency Bandwidth Product

    EBP 122

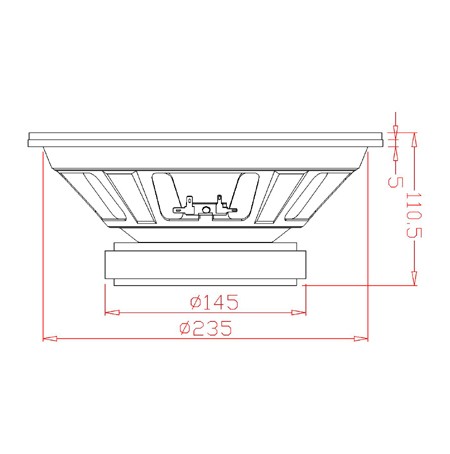

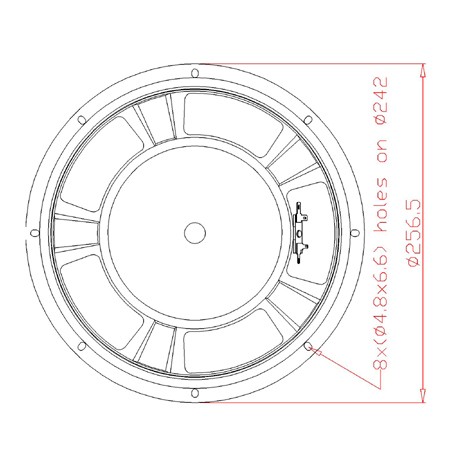

  • Mounting Information

  • Overall Diameter

    256.5 mm

  • Bolt Circle Diameter

    242 mm

  • Bolt Hole Diameter

    4.8 mm

  • Baffle Cutout Diameter

    235 mm

  • Overall Depth

    110 mm

  • Net Weight

    3.5 kg

  • Shipping Weight

    4 kg

  • Shipping Box

    275x275x130 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

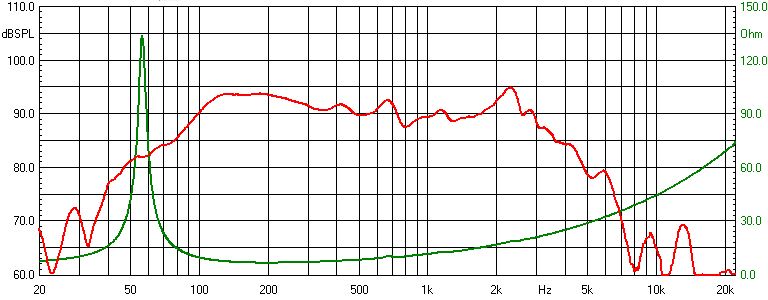

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/PS10-50-Curves.jpg

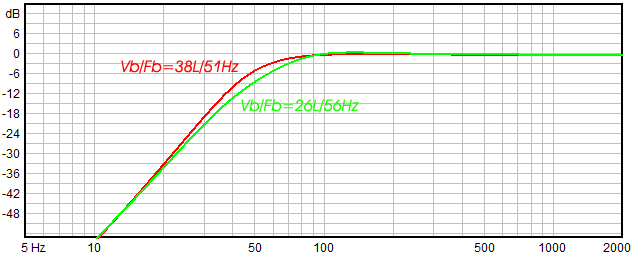

Computer predicted low frequency response

images/upfile/PS10-50-PREDICTED.jpg
