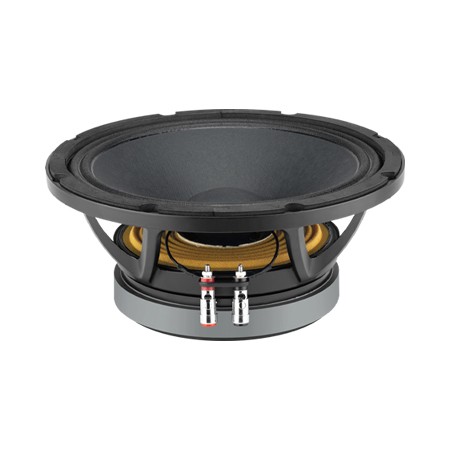

V3010m/8

V3010m/8

1. 600 W continuous program power capacity
2. High sensitivity 97dB/1w/1m
3. Very smooth response up to 4.8k Hz
4. 2.5" inside/outside copper clad aluminum voice coil
5. Aluminum demodulating ring for very low distortion
6. Ideal for mid and mid-bass high loading systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    61.7 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    300 Watts

  • Program Power2

    600 Watts

  • Sensitivity(lw/lm)3

    97 dB

  • Frequency Range4

    60 ~ 4800 Hz

  • Minimum Impedance(Zmin)

    6.2 ohm

  • Voice Coil Diameter

    65/2.5 mm/inch

  • Voice Coil Material

    CCAW

  • Former Material

    Fiberglass

  • Voice Coil Winding Depth

    11 mm

  • Number of layers

    2(inside/outside)

  • Magnet gap depth

    8 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.3 T

  • Magnet Outer Diameter/Wgt

    170/62 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 61.7 Hz

  • DC resistance

    Re 5.0 ohm

  • Mechanical factor

    Qms 11.5

  • Electrical factor

    Qes 0.29

  • Total factor

    Qts 0.29

  • Mechanical compliance

    Cms 0.20 mm/N

  • Mechanical resistance of suspension losses

    Rms 1.13 kg/s

  • Effective Moving Mass

    Mms 33.5 m

  • Half-space efficiency

    Eff 2.7 %

  • BL Factor

    BL 14.9 T.m

  • Equivalent Cas air load

    Vas 34.5 liters

  • Effective piston area

    Sd 0.0353 m^2

  • Max. linear excursion6

    Xmax ±4 mm

  • Voice coil inductance

    Le1K 0.42 mH

  • Efficiency Bandwidth Product

    EBP 212
  • Mounting Information

  • Overall Diameter

    261 mm

  • Bolt Circle Diameter

    246 mm

  • Bolt Hole Diameter

    5.5 mm

  • Baffle Cutout Diameter

    228 mm

  • Overall Depth

    115 mm

  • Net Weight

    5.0 kg

  • Shipping Weight

    5.4 kg

  • Shipping Box

    275x275x130 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

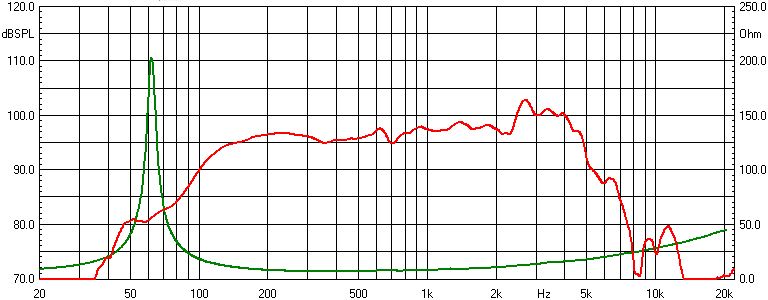

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/V3010m-8-Curves.jpg

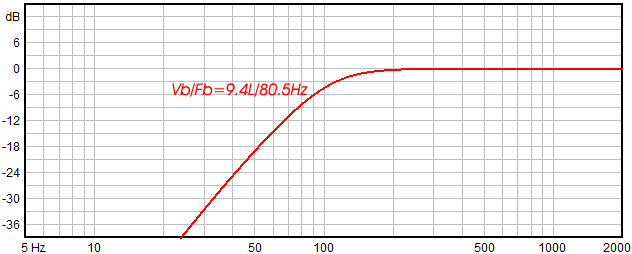

Computer predicted low frequency response

images/upfile/V3010m-8-PREDICTED.jpg
