10DM350

10DM350

1. 700 W continuous program power capacity
2. 96.5dB sensitivity 1w/1m
3. 63~3500Hz frequency response ragne
4. 2.5" inside/outside copper clad aluminum voice coil
5. Peak to Peak maximum excursion of 36mm
6. Double magnets allows a very high force factor and long driver displacement
7. Ideal for very compact 2-ways systems
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    63 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    350 Watts

  • Program Power2

    700 Watts

  • Sensitivity(lw/lm)3

    96.5 dB

  • Frequency Range4

    63~ 3500 Hz

  • Minimum Impedance(Zmin)

    6.4 ohm

  • Voice Coil Diameter

    65/2.5 mm/inch

  • Voice Coil Material

    Fiberglass

  • Former Material

    Fiberglass

  • Voice Coil Winding Depth

    17.5 mm

  • Number of layers

    2(Inside/outside)

  • Magnet gap depth

    8 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.3 T

  • Magnet Outer Diameter/Wgt

    156/100 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 63 Hz

  • DC resistance

    Re 5.3 ohm

  • Mechanical factor

    Qms 13.1

  • Electrical factor

    Qes 0.36

  • Total factor

    Qts 0.36

  • Mechanical compliance

    Cms 0.15 mm/N

  • Mechanical resistance of suspension losses

    Rms 0.89 kg/s

  • Effective Moving Mass

    Mms 42.6 g

  • Half-space efficiency

    Eff 1.7 %

  • BL Factor

    BL 15.7 T.m

  • Equivalent Cas air load

    Vas 25.1 liters

  • Effective piston area

    Sd 0.0346 m^2

  • Max. linear excursion6

    Xmax ±6.7 mm

  • Voice coil inductance

    Le1K 0.74 mH

  • Efficiency Bandwidth Product

    EBP 175

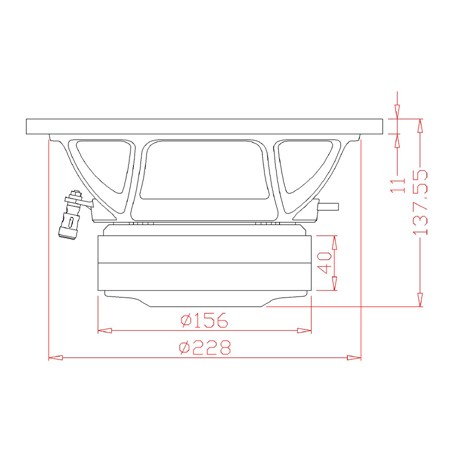

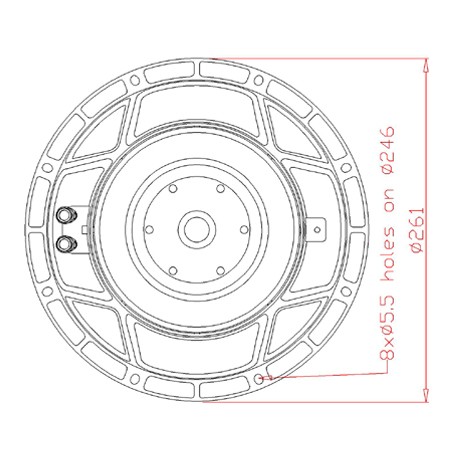

  • Mounting Information

  • Overall Diameter

    261 mm

  • Bolt Circle Diameter

    246 mm

  • Bolt Hole Diameter

    5.5 mm

  • Baffle Cutout Diameter

    228 mm

  • Overall Depth

    137 mm

  • Net Weight

    6.4 kg

  • Shipping Weight

    7.0 kg

  • Shipping Box

    295x295x175 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/10DM350-CURVES.jpg

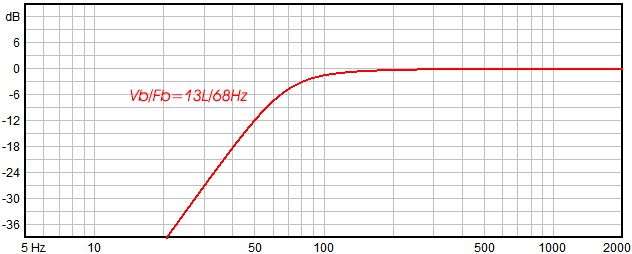

Computer predicted low frequency response

images/upfile/10DM350-PREDICTED.jpg
