E2018

E2018

1. 2400 W continuous program power capacity
2. 97dB Sensitivity 1w/1m
3. 32Hz ~1000Hz frequency response range
4. 100mm(4") inside/outside copper voice coil
5. Heavy duty Y35 ferrite magnet structure (outer diameter:245mm)
6. Big damper allows long excursion with linear behavior for large singal
7. Ideal for high quality bass-reflex system
DOWNLOAD Product Comparison
Technical Specifications
  • General Specifications

  • Nominal Diameter

    32 Hz

  • Rated Impedance

    8 ohm

  • Nominal Power handling1

    1200 Watts

  • Program Power2

    2400 Watts

  • Sensitivity(lw/lm)3

    97 dB

  • Frequency Range4

    32 ~ 1000 Hz

  • Minimum Impedance(Zmin)

    6.8 ohm

  • Voice Coil Diameter

    100/4 mm/inch

  • Voice Coil Material

    Copper

  • Former Material

    Glass Fiber

  • Voice Coil Winding Depth

    31 mm

  • Number of layers

    2(inside/outside)

  • Magnet gap depth

    12 mm

  • Basket

    Cast Aluminum

  • Flux Density

    1.2 T

  • Magnet Outer Diameter/Wgt

    245/190 mm/oz
  • Thiele-Small parameters

  • Resonance frequency

    Fs 32 Hz

  • DC resistance

    Re 5.3 ohm

  • Mechanical factor

    Qms 20.8

  • Electrical factor

    Qes 0.34

  • Total factor

    Qts 0.33

  • Mechanical compliance

    Cms 0.096 mm/N

  • Mechanical resistance of suspension losses

    Rms 2.47 kg/s

  • Effective Moving Mass

    Mms 254 g

  • Half-space efficiency

    Eff 2.1 %

  • BL Factor

    BL 29.1 T.m

  • Equivalent Cas air load

    Vas 200 liters

  • Effective piston area

    Sd 0.1213 m^2

  • Max. linear excursion6

    Xmax ±12.5 mm

  • Voice coil inductance

    Le1K 1.9 mH

  • Efficiency Bandwidth Product

    EBP 94

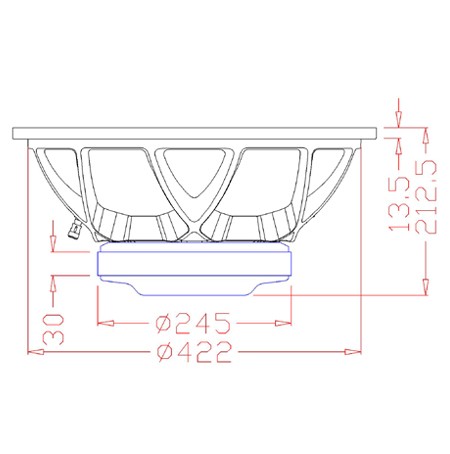

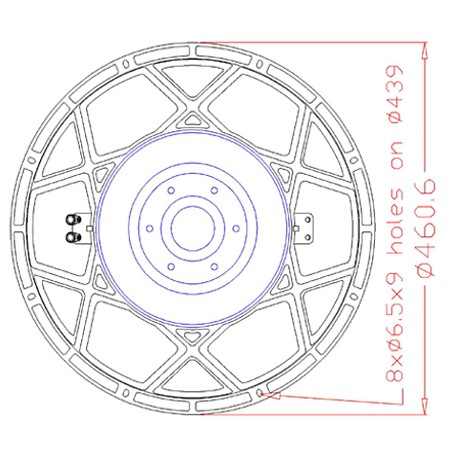

  • Mounting Information

  • Overall Diameter

    466.5 mm

  • Bolt Circle Diameter

    442 mm

  • Bolt Hole Diameter

    6.5 mm

  • Baffle Cutout Diameter

    423 mm

  • Overall Depth

    211 mm

  • Net Weight

    16.7 kg

  • Shipping Weight

    18 kg

  • Shipping Box

    490x490x245 mm
Technical Specifications
  • LF General Specifications

  • Nominal Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Nominal Power handling1

    Watts

  • Program Power2

  • Sensitivity(lw/lm)3

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Voice Coil Winding Depth

    mm

  • Number of layers

    (inside/outside)

  • Magnet Outer Diameter/Wgt

    mm/oz
  • HF General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling(2k~18kHz)

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity3(lw/lm,on axis)

    dB

  • Frequency Range4

    Hz

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

    Copper

  • Diaphragm Material

    mm

  • Magnet Material

    kg
  • LF Thiele-small Parameters

  • Resonance frequency

    Fs Hz

  • DC resistance

    Re ohm

  • Mechanical factor

    Qms

  • Electrical factor

    Qes

  • Total factor

    Qts

  • Mechanical compliance

    Cms mm/N

  • Mechanical resistance of suspension losses

    Rms mech-ohm

  • Effective Moving Mass

    Mms g

  • Half-space efficiency

    Eff %

  • BL Factor

    BL T.m

  • Equivalent Cas air load

    Vas liters

  • Effective piston area

    Sd ㎡

  • Max. linear excursion5

    Xmax mm

  • Voice coil inductance

    Le1K mH

  • Efficiency Bandwidth Product

    EBP mH
  • Mounting Information

  • Overall Diameter

    mm

  • Bolt Circle Diameter

    mm

  • Bolt Hole Diameter

    mm

  • Baffle Cutout Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • Shipping Weight

    kg

  • Shipping Box

    mm
Technical Specifications
  • General Specifications

  • Throat Diameter

    mm/inch

  • Rated Impedance

    ohm

  • Power handling

        Nominal2

    Watts

  •     Continuous Porgram3

    Watts

  • Sensitivity4(1w/1m,on axis,on horn)

    dB

  • Frequency Range

    Hz

  • Minimum Impedance(Zmin)

    ohm

  • Voice Coil Diameter

    mm/inch

  • Voice Coil Material

  • Voice Coil Former

  • Phase Plug Material

  • Diaphragm Material

  • Flux Density

    T

  • Magnet Material

  • Mounting Information

  • Overall Diameter

    mm

  • Overall Depth

    mm

  • Net Weight

    kg

  • mounting

    4xM6 holes,90°on 102
Curves

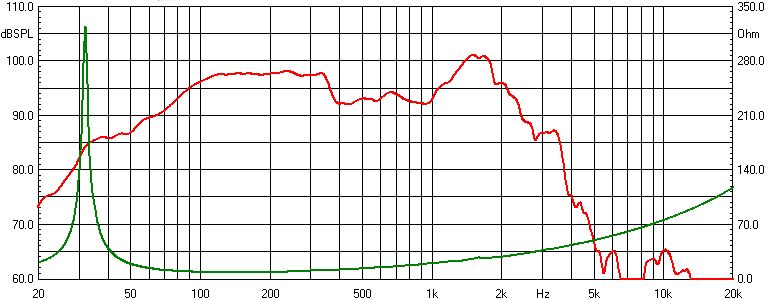

Frequency response measured in a closed enclosure of 600L in an anechoic chamber

images/upfile/E2018-CURVES.jpg

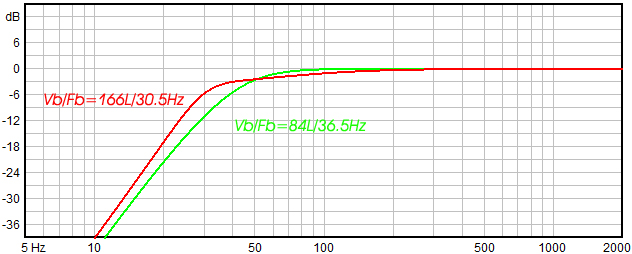

Impedance magnitude curve measureComputer predicted low frequency responsed in free air

images/upfile/E2018-PREDICTED.jpg
